Home > Product > Multi-Rotor Motors > BG-H4114 Agricultural Drone Motor for Spraying and Farming UAV Systems

Multi-Rotor Motors

BG-H4114 Agricultural Drone Motor for Spraying and Farming UAV Systems

Product Number:H4114

get free solutions compare

With a stator diameter of around 40 mm, these motors deliver higher torque, stronger thrust, and improved stability, making them ideal for industrial drones that require reliable and efficient propulsion.

Motor dimensions
47.5*31mm
Number of slots
24N22P
Copper wire grade
200℃
Shaft diameter
3mm
Motor weight
160g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe		Battery	ESC
BG-H4114	KV	W	A	g	g/W	/		S	A
	480	742.27	34.46	3135	4.22	13''straight oar		6S	60
	370	718.16	33.31	3535	4.92	18''straight oar		6S	60
	420	615.52	28.47	3047	4.95	15''straight oar		6S	80

test data

Model	Accelerator	Voltage	Pulling Force	Torque	Current	Speed	Power	Efficiency	Motor Temperature
BG-H4114 KV480	%	V	g	N.m	A	rpm	W	g/W	℃
	45%	21.92	712	0.19	4.16	4529	91.19	7.81	45
	50%	21.91	916	0.24	5.81	5050	127.3	7.2
	60%	21.84	1303	0.32	9.18	5956	200.49	6.5
	70%	21.75	1715	0.43	14.01	6754	304.72	5.63
	80%	21.72	2242	0.56	20.26	7550	440.05	5.09
	85%	21.68	2488	0.62	23.83	7924	516.63	4.82
	90%	21.63	2711	0.68	27.31	8236	590.72	4.59
	95%	21.59	2947	0.75	30.99	8532	669.07	4.4
	100%	21.54	3135	0.81	34.46	8780	742.27	4.22

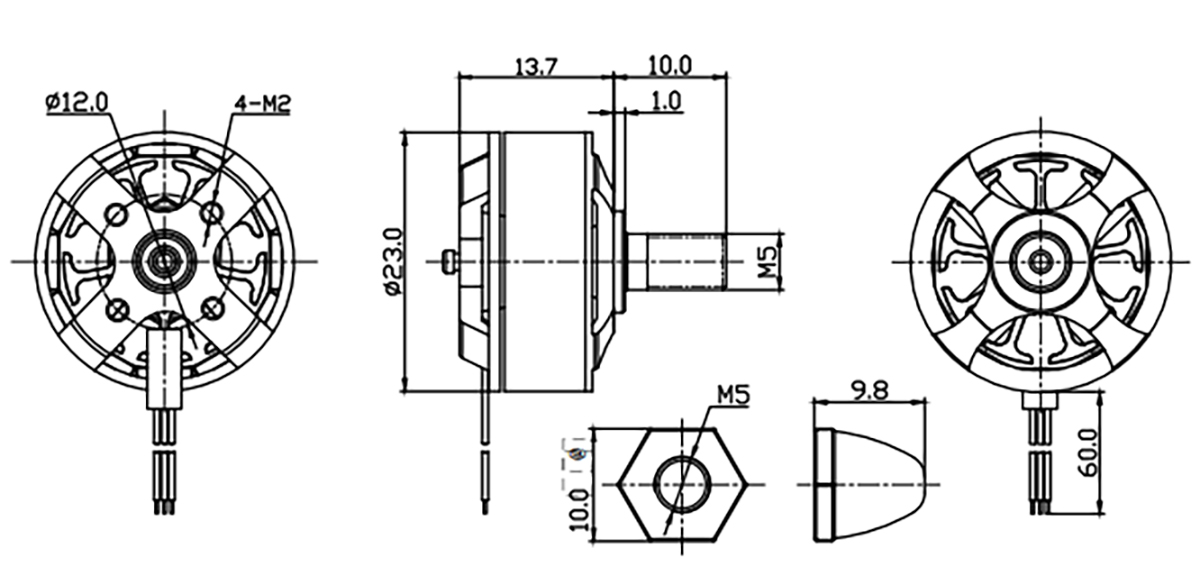

drawing
