Multi-Rotor Motors

BGS-S0804 12000KV 15000KV 2S For Handheld gimbal devices

Product Number:S0804

get free solutions compare

The 08xx series external rotor motors offer compact size, high speed, and efficient performance, making them the ideal choice for mini UAVs and precision small equipment applications.

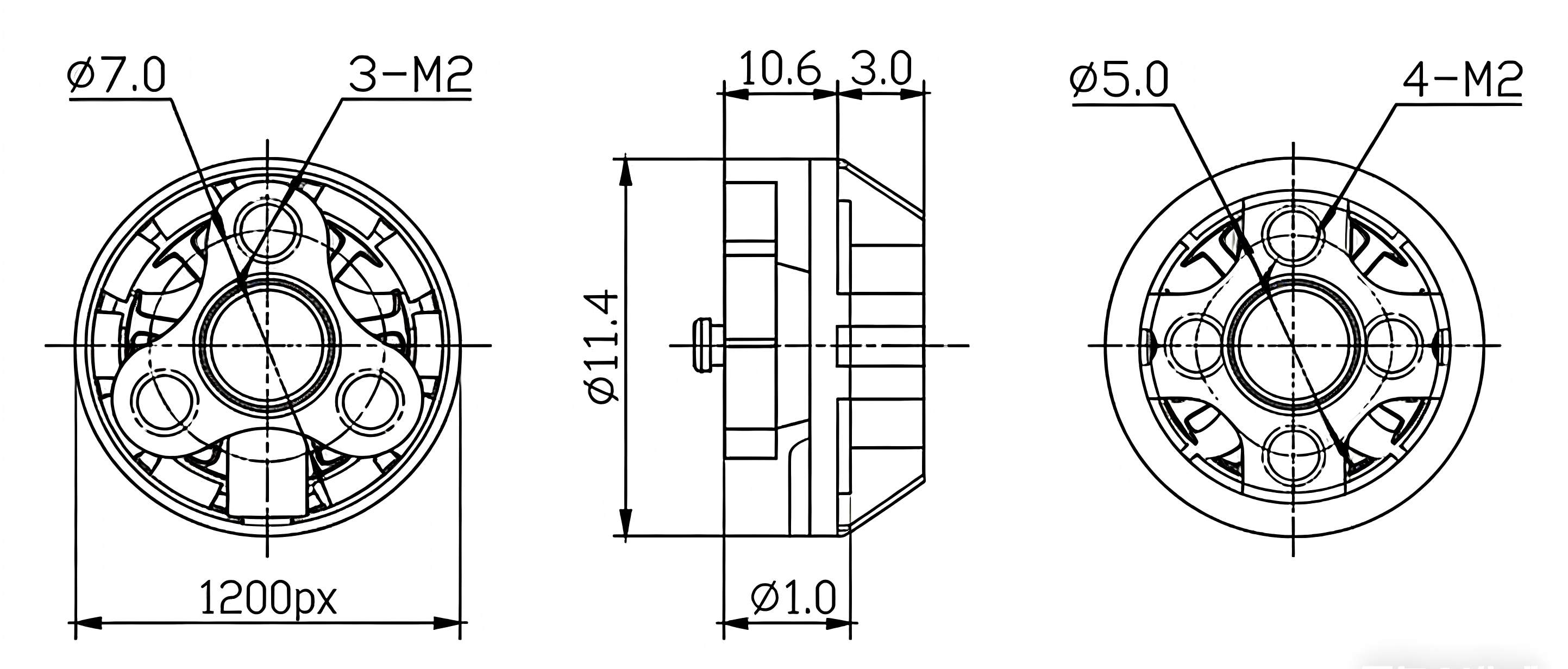

Motor dimensions
11.4*10.6mm
Number of slots
9N12P
Copper wire grade
200℃
Shaft diameter
1mm
Motor weight
3.3g
Service life
＞1000h

Basic Data

MODEL	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-S0804	KV	W	A	g	g/W	/	S	A
	12000	21.5	5.8	55	2.6	2035	1S	10
	15000	18.9	5.1	56	3	1940	2S	10
	15000	65	8.8	96	1.5	1940	2S	20
