BG-P4119 350KV 12S High Performance Drone Propulsion Motor for Multirotor UAV Platforms

Product Number:P4119

get free solutions compare

With a stator diameter of around 40 mm, these motors deliver higher torque, stronger thrust, and improved stability, making them ideal for industrial drones that require reliable and efficient propulsion.

Motor dimensions
50.5*44mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
3mm
Motor weight
280g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe		Battery	ESC
BG-P4119	KV	W	A	g	g/W	/		S	A
	350	2874.74	66.33	7427	2.58	13''		12S	80
	400	1462.49	50.94	5001	3.42	13''		8S	80
	600	1789	85.68	5565	3.11	13''		6S	100

test data

Model	Accelerator	Voltage	Pulling Force	Torque	Current	Speed	Power	Efficiency	Motor Temperature
BG-P4119 KV350	%	V	g	N.m	A	rpm	W	g/W	℃
	45%	44	2331	0.66	9.56	6119	420.64	5.54	40
	50%	43.96	2844	0.8	12.72	6715	559.17	5.09
	60%	43.86	3640	1.02	18.77	7686	823.25	4.42
	70%	43.79	4651	1.34	27.75	8676	1215.17	3.83
	80%	43.66	5646	1.68	38.59	9590	1684.84	3.35
	85%	43.57	6188	1.88	45.24	9994	1971.11	3.14
	90%	43.48	6589	2.07	51.8	10382	2252.26	2.93
	95%	43.4	6995	2.26	58.53	10733	2540.2	2.75
	100%	43.34	7427	2.5	66.33	10996	2874.74	2.58

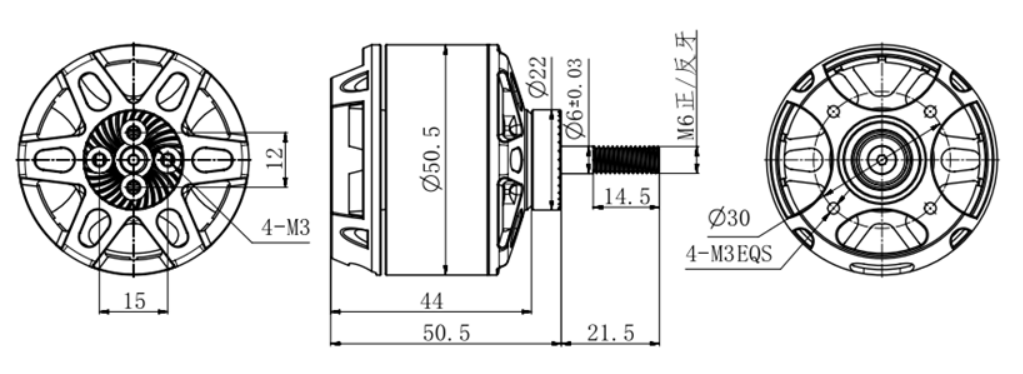

drawing
