BG-F2810 900KV 1200KV High Torque FPV Motor for Freestyle Drone

Product Number:BG-F2810

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

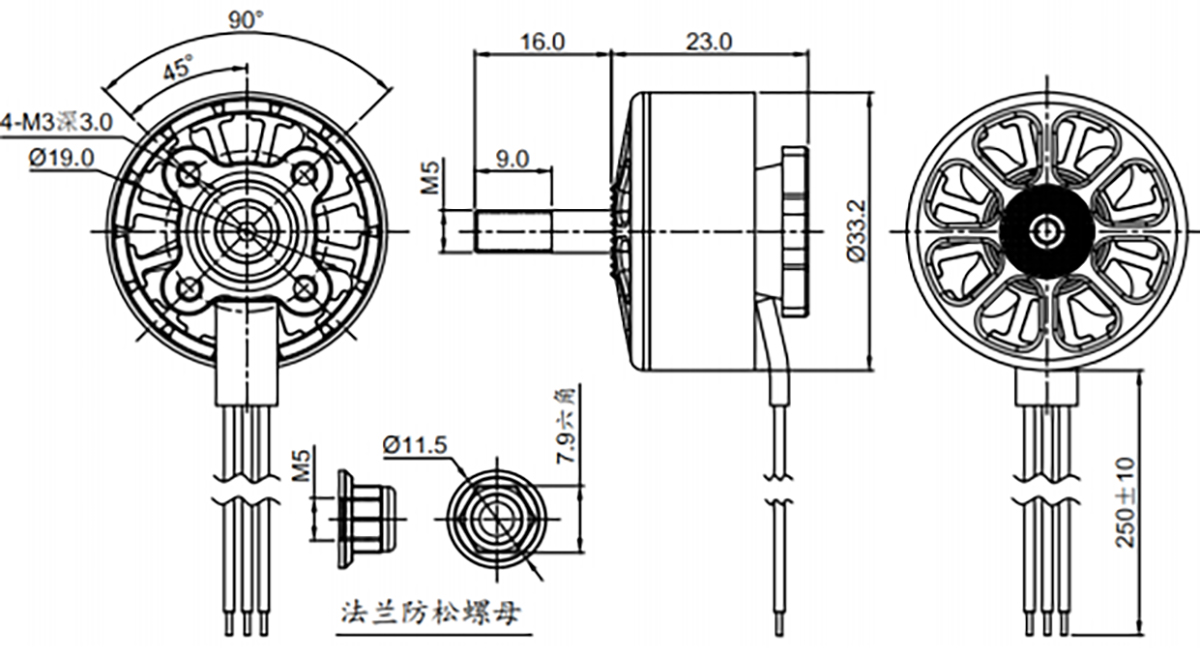

Motor dimensions
33.2*23mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
65g
Service life
＞1000h

Basic Data

MODEL	KV Value	maximum power	Maximum current	pull	Efficiency	Awe	Battery	Electronic Tuning
BG-F2810	KV	W	A	g	g/W	/	S	A
	900	910	41	2450	2.7	8045	6S	80
	1200	906	40.8	2050	2.3	7040	6S	80
	1350	1148	51.7	2100	1.8	7035	6S	100
