BG-F2204 2300KV FPV Motor 2S 3S 25g Mini Drone Motor

Product Number:BG-F2204

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

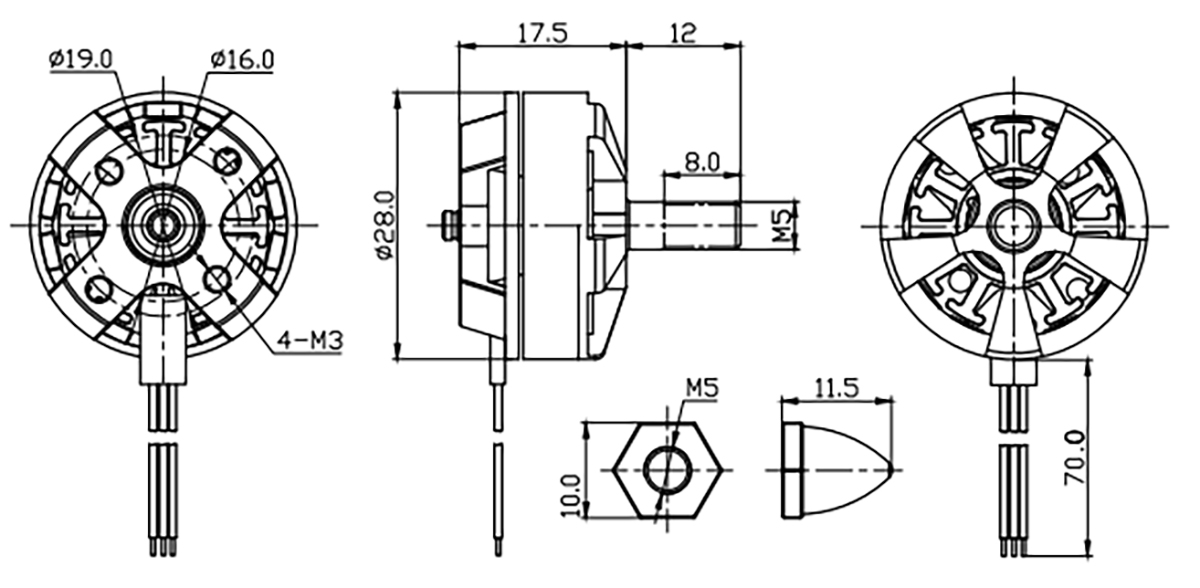

Motor dimensions
28*17.5mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
25g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-F2204	KV	W	A	g	g/W	/	S	A
	2300	43	5.8	220	5.1	6X3	2S	20
	2300	105	9.5	365	3.5	5043	3S	30
	2300	117	10.5	408	3.5	6X3	3S	25
