BG-S0705 8000KV 12000KV For Micro drones and Mini quadcopters

Product Number:S0705

get free solutions compare

The 07XX series external rotor motors offer compact size, high speed, and efficient performance, making them the ideal choice for mini UAVs and precision small equipment applications.

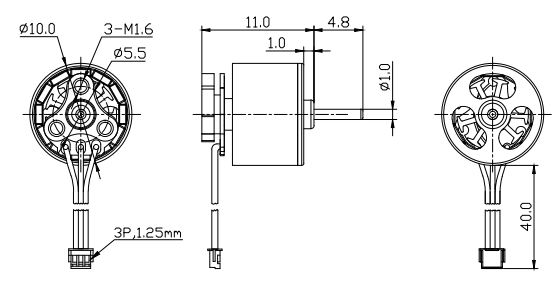

Motor dimensions
10*11mm
Number of slots
9N12P
Copper wire grade
200℃
Shaft diameter
1mm
Motor weight
2.75g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-S0705	KV	W	A	g	g/W	/	S	A
	8000	5.6	1.5	20	3.6	56mmXφ1.0	1S	5
	10000	6.7	1.8	24	3.6	56mmXφ1.0	1S	5
	12000	36	4.9	60	1.7	56mmXφ1.0	2S	10
