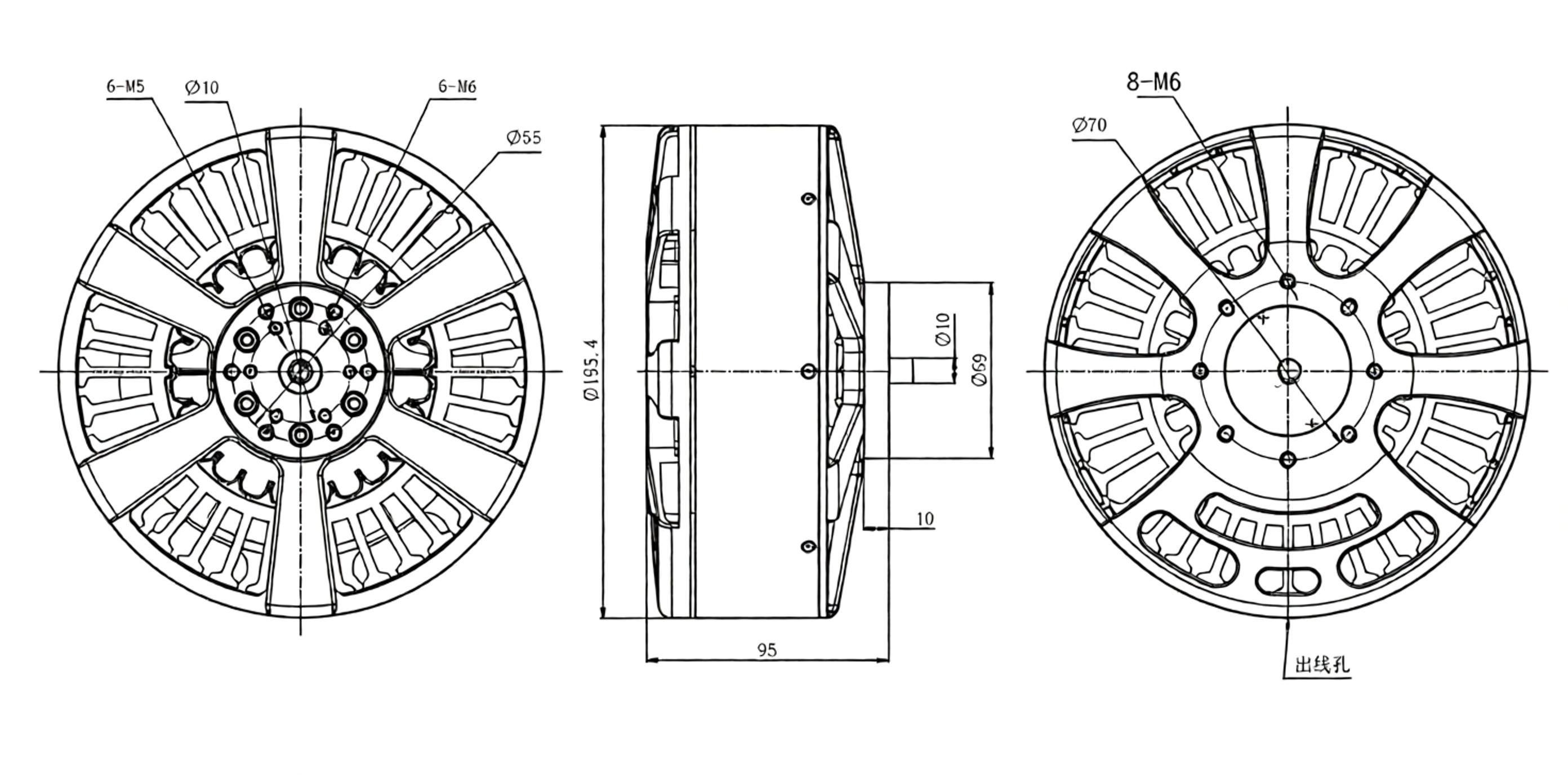

195.4*95mm
36N42P
200℃
10mm
7900g
＞1000h
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Propeller | Battery | ESC | |
| BGS-EA195 | KV | W | A | g | g/W | / | S | A | |
| 50 | 21287.2 | 236 | 68495 | 3.22 | 40inch Straight blade | 24 | 330 | ||
| 55 | 29766 | 330 | 78795 | 2.65 | 40inch Straight blade | 24 | 330 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-EA195 KV50 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 50% | 90.2 | 20085 | 13.32 | 36 | 2327 | 3247.2 | 6.18 | 60 | |
| 55% | 90.2 | 23999 | 15.99 | 47 | 2531 | 4239.4 | 5.66 | ||
| 60% | 90.2 | 27295 | 18.09 | 58 | 2761 | 5231.6 | 5.21 | ||
| 65% | 90.2 | 32651 | 21.39 | 74 | 2979 | 6674.8 | 4.89 | ||
| 70% | 90.2 | 37286 | 24.29 | 90 | 3191 | 8118 | 4.59 | ||
| 75% | 90.2 | 44805 | 28.79 | 114 | 3410 | 10282.8 | 4.35 | ||
| 80% | 90.2 | 51294 | 33.14 | 140 | 3638 | 12628 | 4.06 | ||
| 90% | 90.2 | 61079 | 41.81 | 195 | 4017 | 17589 | 3.47 | ||
| 100% | 90.2 | 68495 | 47.93 | 236 | 4241 | 21287.2 | 3.21 | ||
| BGS-EA195 KV55 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 50% | 90.2 | 26059 | 17.35 | 54 | 2681 | 4870.8 | 5.35 | 65 | |
| 55% | 90.2 | 30488 | 21.35 | 72 | 2904 | 6494.4 | 4.69 | ||
| 60% | 90.2 | 37286 | 24.34 | 90 | 3184 | 8118 | 4.59 | ||
| 65% | 90.2 | 42024 | 28.89 | 115 | 3428 | 10373 | 4.05 | ||
| 70% | 90.2 | 48925 | 33.43 | 142 | 3659 | 12808.4 | 3.81 | ||
| 75% | 90.2 | 54693 | 36.87 | 166 | 3878 | 14973.2 | 3.65 | ||
| 80% | 90.2 | 62624 | 43.61 | 208 | 4108 | 18761.6 | 3.33 | ||
| 90% | 90.2 | 72409 | 55.11 | 289 | 4490 | 26067.8 | 2.77 | ||
| 100% | 90.2 | 78795 | 61.30 | 330 | 4637 | 29766 | 2.64 |
