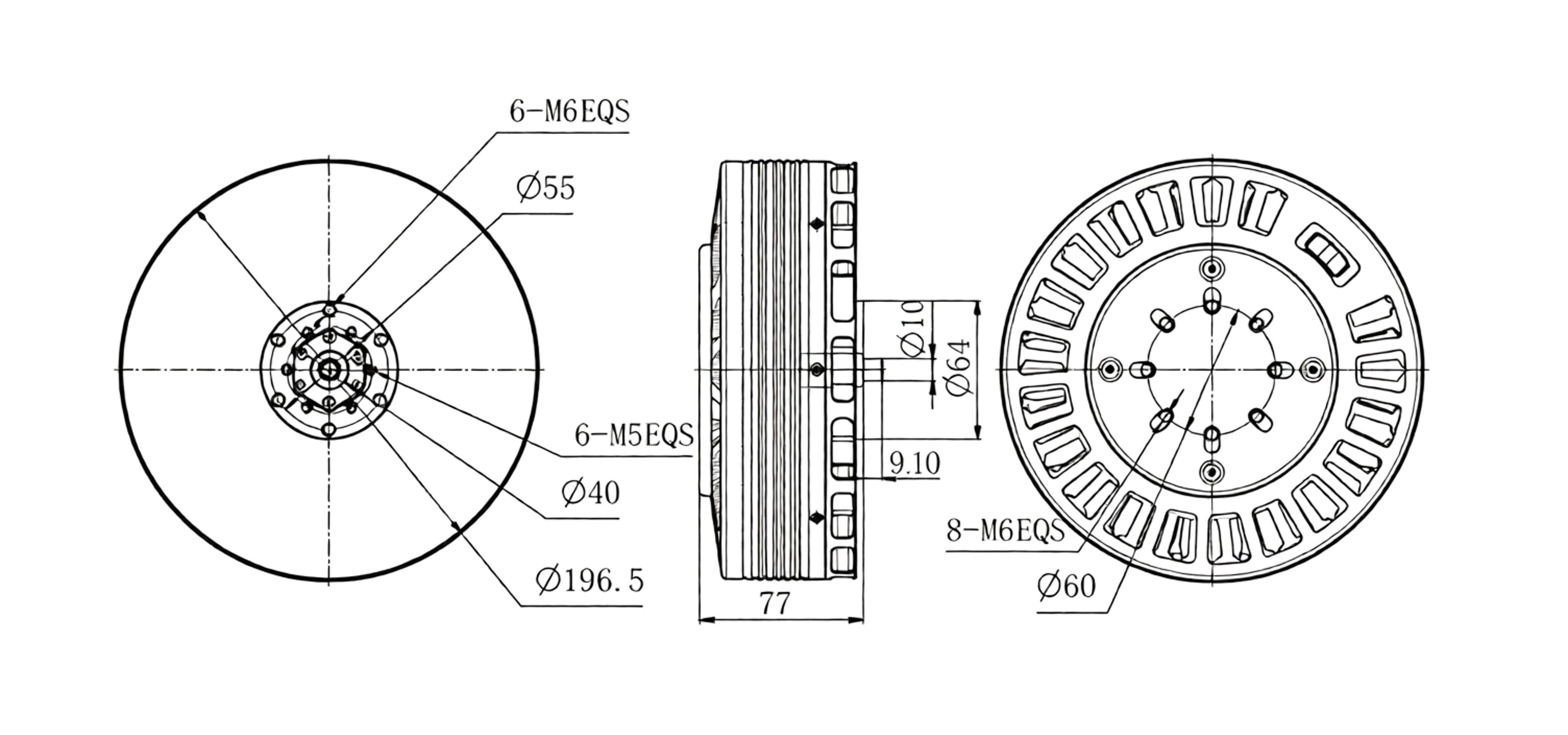

204.6*77mm
36N42P
220℃
25mm
4460g
＞1000h
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Propeller | Battery | ESC | |
| BGS-EA188 | KV | W | A | g | g/W | / | S | A | |
| 38 | 18567.12 | 216.40 | 96303 | 5.19 | 65inch Folding paddle | 24 | 350 | ||
| 38 | 18541.74 | 183.40 | 96043 | 5.18 | 65inch Folding paddle | 28 | 350 | ||
| 38 | 21598.20 | 253.50 | 105984 | 4.91 | 68inch Straight paddle | 24 | 350 | ||
| 30 | 19553.85 | 228.70 | 106106 | 5.43 | 76inch Straight paddle | 24 | 350 | ||
| 38 | 21962.67 | 218.10 | 106231 | 4.84 | 68inch Straight paddle | 28 | 350 | ||
| 30 | 20593.15 | 204.50 | 108433 | 5.27 | 76inch Straight paddle | 28 | 350 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-EA188 24S KV38 65inch Folding paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 87.90 | 39485 | 28.10 | 53.10 | 1409 | 4667.49 | 8.46 | 55 | |
| 45% | 87.70 | 45928 | 33.10 | 67.00 | 1508 | 5875.90 | 7.82 | ||
| 50% | 87.50 | 51499 | 37.20 | 79.90 | 1596 | 6991.25 | 7.37 | ||
| 55% | 87.30 | 56952 | 40.80 | 92.70 | 1676 | 8092.71 | 7.04 | ||
| 60% | 87.20 | 61982 | 44.40 | 105.80 | 1749 | 9225.76 | 6.72 | ||
| 65% | 87.00 | 66726 | 48.10 | 119.70 | 1814 | 10413.90 | 6.41 | ||
| 70% | 86.80 | 72060 | 51.80 | 134.40 | 1877 | 11665.92 | 6.18 | ||
| 75% | 86.60 | 76016 | 54.70 | 147.20 | 1933 | 12747.52 | 5.96 | ||
| 80% | 86.40 | 80592 | 58.40 | 163.10 | 1983 | 14091.84 | 5.72 | ||
| 85% | 86.20 | 84755 | 61.30 | 177.10 | 2033 | 15266.02 | 5.55 | ||
| 90% | 85.90 | 89191 | 65.30 | 195.50 | 2076 | 16793.45 | 5.31 | ||
| 95% | 85.80 | 92615 | 67.00 | 206.70 | 2117 | 17734.86 | 5.22 | ||
| 100% | 85.80 | 96303 | 68.50 | 216.40 | 2153 | 18567.12 | 5.19 | ||
| BGS-EA188 28S KV38 65inch Folding paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 103.00 | 39146 | 27.80 | 45.00 | 1409 | 4635.00 | 8.45 | 60 | |
| 45% | 102.80 | 45178 | 32.00 | 55.50 | 1507 | 5705.40 | 7.92 | ||
| 50% | 102.70 | 50953 | 36.30 | 66.80 | 1597 | 6860.36 | 7.43 | ||
| 55% | 102.50 | 56322 | 40.40 | 78.30 | 1676 | 8025.75 | 7.02 | ||
| 60% | 102.40 | 61480 | 43.80 | 89.00 | 1750 | 9113.60 | 6.75 | ||
| 65% | 102.10 | 66945 | 48.60 | 103.30 | 1813 | 10546.93 | 6.35 | ||
| 70% | 102.00 | 71651 | 51.70 | 114.30 | 1876 | 11658.60 | 6.15 | ||
| 75% | 101.80 | 76500 | 55.50 | 127.30 | 1932 | 12959.14 | 5.90 | ||
| 80% | 101.70 | 80852 | 58.40 | 138.80 | 1985 | 14115.96 | 5.73 | ||
| 85% | 101.50 | 85248 | 61.60 | 151.50 | 2030 | 15377.25 | 5.54 | ||
| 90% | 101.40 | 88484 | 63.50 | 160.80 | 2076 | 16305.12 | 5.43 | ||
| 95% | 101.20 | 92875 | 66.80 | 174.80 | 2115 | 17689.76 | 5.25 | ||
| 100% | 101.10 | 96043 | 68.90 | 183.40 | 2148 | 18541.74 | 5.18 | ||
| BGS-EA188 24S KV38 68inch Straight paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 87.90 | 37065 | 23.10 | 48.30 | 1559 | 4245.57 | 8.73 | 60 | |
| 45% | 87.70 | 43374 | 26.90 | 60.90 | 1691 | 5340.93 | 8.12 | ||
| 50% | 87.60 | 50177 | 31.00 | 75.10 | 1813 | 6578.76 | 7.63 | ||
| 55% | 87.30 | 56906 | 35.50 | 91.90 | 1925 | 8022.87 | 7.09 | ||
| 60% | 87.10 | 63373 | 39.50 | 108.10 | 2031 | 9415.51 | 6.73 | ||
| 65% | 86.90 | 69782 | 43.60 | 125.70 | 2129 | 10923.33 | 6.39 | ||
| 70% | 86.70 | 75614 | 47.00 | 142.30 | 2221 | 12337.41 | 6.13 | ||
| 75% | 86.40 | 82083 | 51.50 | 163.20 | 2306 | 14100.48 | 5.82 | ||
| 80% | 86.10 | 86688 | 54.90 | 181.60 | 2385 | 15635.76 | 5.54 | ||
| 85% | 85.90 | 90859 | 57.80 | 198.70 | 2461 | 17068.33 | 5.32 | ||
| 90% | 85.60 | 96492 | 61.70 | 221.00 | 2532 | 18917.60 | 5.10 | ||
| 95% | 85.30 | 100492 | 65.10 | 242.60 | 2598 | 20693.78 | 4.86 | ||
| 100% | 85.20 | 105984 | 68.50 | 253.50 | 2650 | 21598.20 | 4.91 | ||
| BGS-EA188 28S KV38 68inch Straight paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 102.90 | 38361 | 23.80 | 42.60 | 1559 | 4383.54 | 8.75 | 65 | |
| 45% | 102.80 | 44515 | 27.90 | 54.10 | 1691 | 5561.48 | 8.00 | ||
| 50% | 102.60 | 51373 | 32.00 | 66.50 | 1814 | 6822.90 | 7.53 | ||
| 55% | 102.40 | 57273 | 36.60 | 81.10 | 1926 | 8304.64 | 6.90 | ||
| 60% | 102.20 | 64254 | 40.30 | 94.30 | 2032 | 9637.46 | 6.67 | ||
| 65% | 102.00 | 71063 | 44.30 | 109.40 | 2130 | 11158.80 | 6.37 | ||
| 70% | 101.80 | 77614 | 48.60 | 125.80 | 2221 | 12806.44 | 6.06 | ||
| 75% | 101.60 | 83147 | 52.30 | 141.80 | 2306 | 14406.88 | 5.77 | ||
| 80% | 101.40 | 89191 | 56.30 | 159.10 | 2387 | 16132.74 | 5.53 | ||
| 85% | 101.10 | 94935 | 60.40 | 178.20 | 2464 | 18016.02 | 5.27 | ||
| 90% | 100.80 | 101403 | 64.30 | 198.20 | 2536 | 19978.56 | 5.08 | ||
| 95% | 100.70 | 104523 | 66.10 | 209.80 | 2580 | 21126.86 | 4.95 | ||
| 100% | 100.70 | 106231 | 68.90 | 218.10 | 2648 | 21962.67 | 4.84 | ||
| BGS-EA188 28S KV30 76inch Folding paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 103.00 | 37048 | 25.60 | 38.50 | 1308 | 3965.50 | 9.34 | 70 | |
| 45% | 102.90 | 43418 | 30.10 | 48.90 | 1426 | 5031.81 | 8.63 | ||
| 50% | 102.70 | 50542 | 34.80 | 60.50 | 1511 | 6213.35 | 8.13 | ||
| 55% | 102.60 | 55442 | 39.10 | 72.10 | 1600 | 7397.46 | 7.49 | ||
| 60% | 102.40 | 61281 | 43.20 | 84.20 | 1682 | 8622.08 | 7.11 | ||
| 65% | 102.20 | 67108 | 47.70 | 97.70 | 1758 | 9984.94 | 6.72 | ||
| 70% | 102.10 | 73605 | 51.90 | 111.20 | 1828 | 11353.52 | 6.48 | ||
| 75% | 101.90 | 80058 | 56.20 | 125.70 | 1895 | 12808.83 | 6.25 | ||
| 80% | 101.70 | 85348 | 59.90 | 139.60 | 1958 | 14197.32 | 6.01 | ||
| 85% | 101.40 | 92115 | 63.80 | 154.70 | 2014 | 15686.58 | 5.87 | ||
| 90% | 101.20 | 98058 | 68.20 | 172.30 | 2069 | 17436.76 | 5.62 | ||
| 95% | 101.00 | 103603 | 72.20 | 189.60 | 2119 | 19149.60 | 5.41 | ||
| 100% | 100.70 | 108433 | 75.40 | 204.50 | 2157 | 20593.15 | 5.27 |
