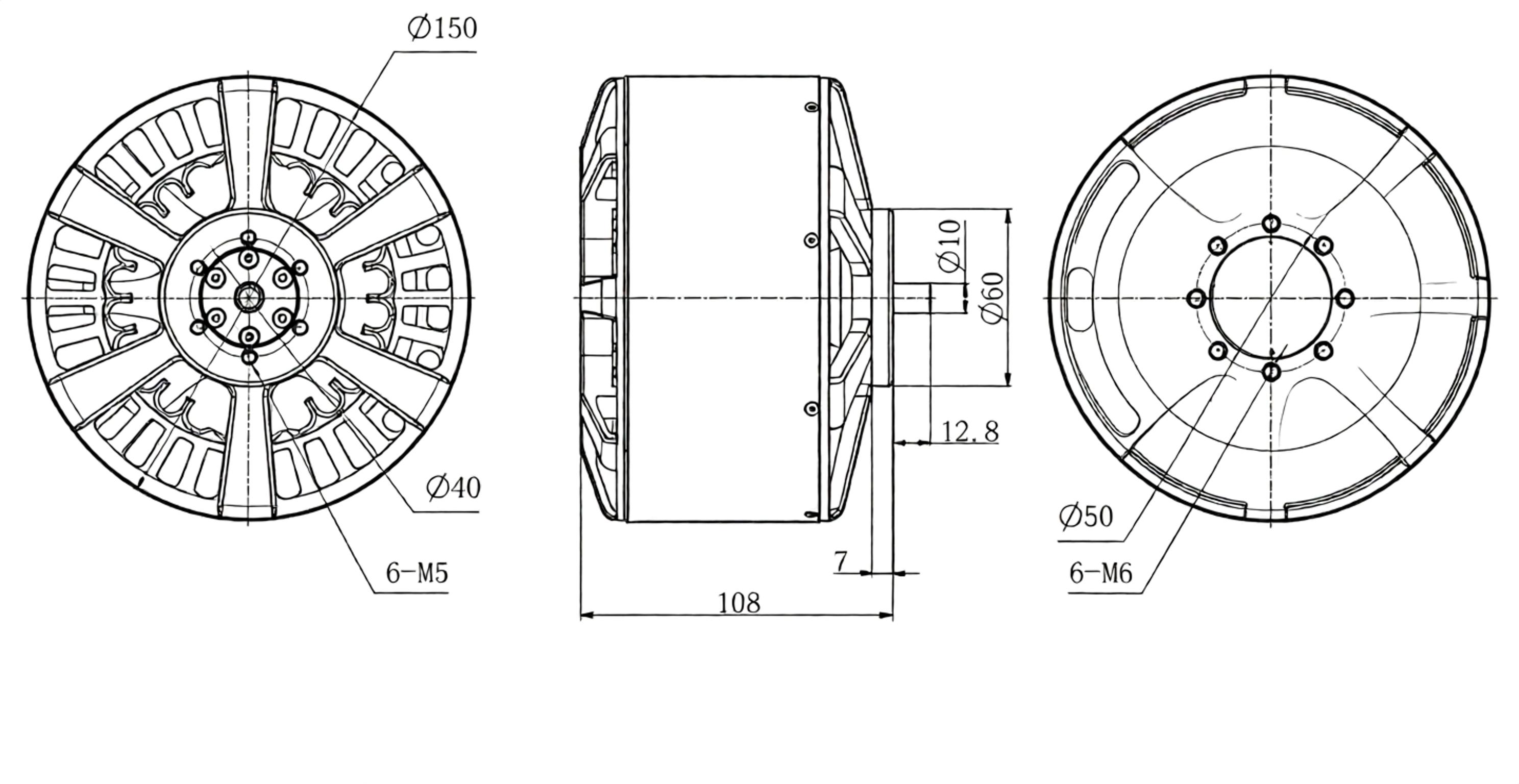

150*108mm
36N30P
200℃
10mm
4500g
＞1000h
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Propeller | Battery | ESC | |
| BGS-EA180 96S | KV | W | A | g | g/W | / | S | A | |
| 12 | 26665.28 | 73.60 | 86241 | 3.23 | 52inch Straight blade | 96 | 60 | ||
| 10 | 21699.65 | 59.50 | 99652 | 4.59 | 62inch Straight blade | 96 | 60 | ||
| 8 | 19543.55 | 53.50 | 101092 | 5.17 | 68inch Straight blade | 96 | 60 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-EA180 96S KV12 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 367.90 | 18815 | 12.16 | 6.50 | 1878 | 2391.35 | 7.87 | 55 | |
| 45% | 367.90 | 23194 | 14.65 | 8.60 | 2063 | 3163.94 | 7.33 | ||
| 50% | 367.80 | 28879 | 17.61 | 11.50 | 2294 | 4229.70 | 6.83 | ||
| 55% | 367.70 | 35303 | 21.07 | 15.10 | 2516 | 5552.27 | 6.36 | ||
| 60% | 367.30 | 41296 | 24.86 | 19.40 | 2738 | 7125.62 | 5.80 | ||
| 65% | 366.90 | 48323 | 29.09 | 24.40 | 2939 | 8952.36 | 5.40 | ||
| 70% | 366.50 | 55307 | 33.14 | 29.40 | 3105 | 10775.10 | 5.13 | ||
| 75% | 365.90 | 64681 | 38.68 | 37.00 | 3342 | 13538.30 | 4.78 | ||
| 80% | 365.10 | 72045 | 44.40 | 44.90 | 3526 | 16392.99 | 4.39 | ||
| 85% | 364.30 | 78272 | 50.74 | 54.40 | 3730 | 19817.92 | 3.95 | ||
| 90% | 363.20 | 81931 | 57.89 | 65.40 | 3919 | 23753.28 | 3.45 | ||
| 95% | 362.40 | 85095 | 62.59 | 72.70 | 4020 | 26346.48 | 3.23 | ||
| 100% | 362.30 | 86241 | 63.54 | 73.60 | 4008 | 26665.28 | 3.23 | ||
| BGS-EA180 96S KV10 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 368.80 | 16594 | 12.14 | 4.50 | 1305 | 1659.60 | 10.00 | 60 | |
| 45% | 368.70 | 20466 | 14.40 | 5.90 | 1443 | 2175.33 | 9.41 | ||
| 50% | 368.70 | 25874 | 17.93 | 8.20 | 1611 | 3023.34 | 8.56 | ||
| 55% | 368.70 | 31289 | 21.23 | 10.60 | 1758 | 3908.22 | 8.01 | ||
| 60% | 368.60 | 36844 | 24.92 | 13.40 | 1893 | 4939.24 | 7.46 | ||
| 65% | 368.30 | 43931 | 28.90 | 16.80 | 2045 | 6187.44 | 7.10 | ||
| 70% | 367.90 | 51085 | 33.50 | 21.00 | 2202 | 7725.90 | 6.61 | ||
| 75% | 367.50 | 58431 | 38.17 | 25.50 | 2345 | 9371.25 | 6.24 | ||
| 80% | 367.10 | 66665 | 43.44 | 30.80 | 2486 | 11306.68 | 5.90 | ||
| 85% | 366.70 | 74172 | 48.71 | 36.50 | 2624 | 13384.55 | 5.54 | ||
| 90% | 366.00 | 83992 | 55.54 | 44.10 | 2775 | 16140.60 | 5.20 | ||
| 95% | 365.20 | 93713 | 65.25 | 53.90 | 2881 | 19684.28 | 4.76 | ||
| 100% | 364.70 | 99652 | 69.70 | 59.50 | 2973 | 21699.65 | 4.59 | ||
| BGS-EA180 96S KV8 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 368.80 | 19656 | 14.68 | 4.80 | 1152 | 1770.24 | 11.10 | 65 | |
| 45% | 368.70 | 24185 | 17.67 | 6.40 | 1275 | 2359.68 | 10.25 | ||
| 50% | 368.70 | 28761 | 20.71 | 8.20 | 1394 | 3023.34 | 9.51 | ||
| 55% | 368.60 | 34319 | 25.20 | 10.90 | 1522 | 4017.74 | 8.54 | ||
| 60% | 368.60 | 40587 | 28.76 | 13.50 | 1652 | 4976.10 | 8.16 | ||
| 65% | 368.40 | 46538 | 32.99 | 16.60 | 1771 | 6115.44 | 7.61 | ||
| 70% | 368.00 | 54620 | 38.44 | 20.80 | 1902 | 7654.40 | 7.14 | ||
| 75% | 367.60 | 62412 | 43.24 | 24.90 | 2022 | 9153.24 | 6.82 | ||
| 80% | 367.20 | 69673 | 49.14 | 30.10 | 2148 | 11052.72 | 6.30 | ||
| 85% | 366.90 | 77552 | 54.64 | 35.30 | 2264 | 12951.57 | 5.99 | ||
| 90% | 366.30 | 85937 | 60.70 | 41.10 | 2369 | 15054.93 | 5.71 | ||
| 95% | 365.70 | 95285 | 67.81 | 48.50 | 2498 | 17736.45 | 5.37 | ||
| 100% | 365.30 | 101092 | 72.39 | 53.50 | 2578 | 19543.55 | 5.17 |
