BG-P3508 380KV 700KV Drone propulsion system motor

Product Number:P3508

get free solutions compare

With a stator diameter of around 30 mm, these motors provide an excellent balance of power, efficiency, and lightweight structure, making them ideal for multirotor drones, aerial photography platforms, and industrial UAV equipment.

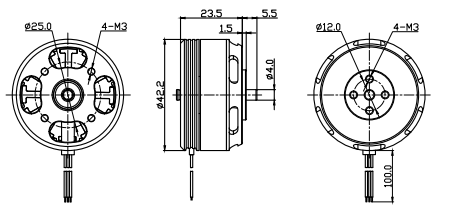

Motor dimensions
42.2*23.5mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
4mm
Motor weight
96g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-P3508	KV	W	A	g	g/W	/	S	A
	380	235	10.6	1560	6.6	12X3.8	6S	20
	580	241	16.3	1600	6.6	15X5	4S	30
	700	334	22.6	1700	5.1	12X3.8	4S	40
