Home > Product > Vertical Motors > BG-F2207 1350KV 1500KV FPV Motor Photography Drone Motor

Vertical Motors

BG-F2207 1350KV 1500KV FPV Motor Photography Drone Motor

Product Number:BG-F2207

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

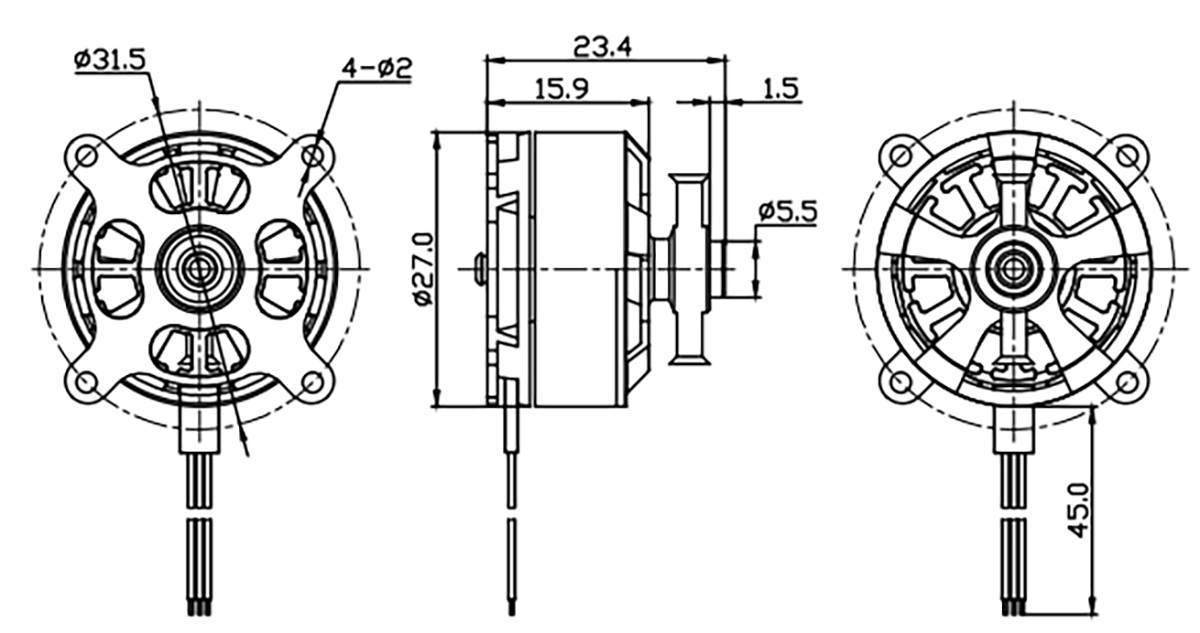

Motor dimensions
27*15.9mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
5.5mm
Motor weight
28g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-F2207	KV	W	A	g	g/W	/	S	A
	1350	131	11.8	700	5.3	8040	3S	25
	1500	104	14	560	5.4	1047	2S	30
	1500	87	11.7	520	6	9050	3S	25
