BG-P3115 1200kv Brushless Motor for UAV Propulsion and High-Speed Drive Systems

Product Number:P3115

get free solutions compare

The 3115 outer rotor motor is a high-efficiency brushless DC outrunner motor (BLDC), which has the characteristics of compact structure, strong power and high efficiency. The "3115" in the model number usually indicates the stator size: the stator diameter is about 31mm, the stator height is about 15mm.

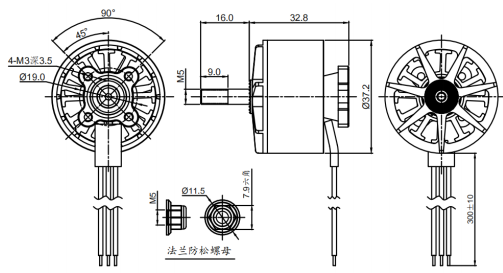

Motor dimensions
37.2*32.8mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
112g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum current	Pull	Efficiency	Awe	Battery	ESC
BG-P3115	KV	W	A	g	g/W	/	S	A
	900	1143	50.5	3320	2.9	9050	6S	100
	1050	1237	55.7	3430	2.8	9047	6S	120
	1200	1500	67.6	3750	2.5	9045	6S	120
