BG-F2306 2400KV 2700KV Professional Cinematic Drone Motor Brushless FPV Motor

Product Number:BG-F2306

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

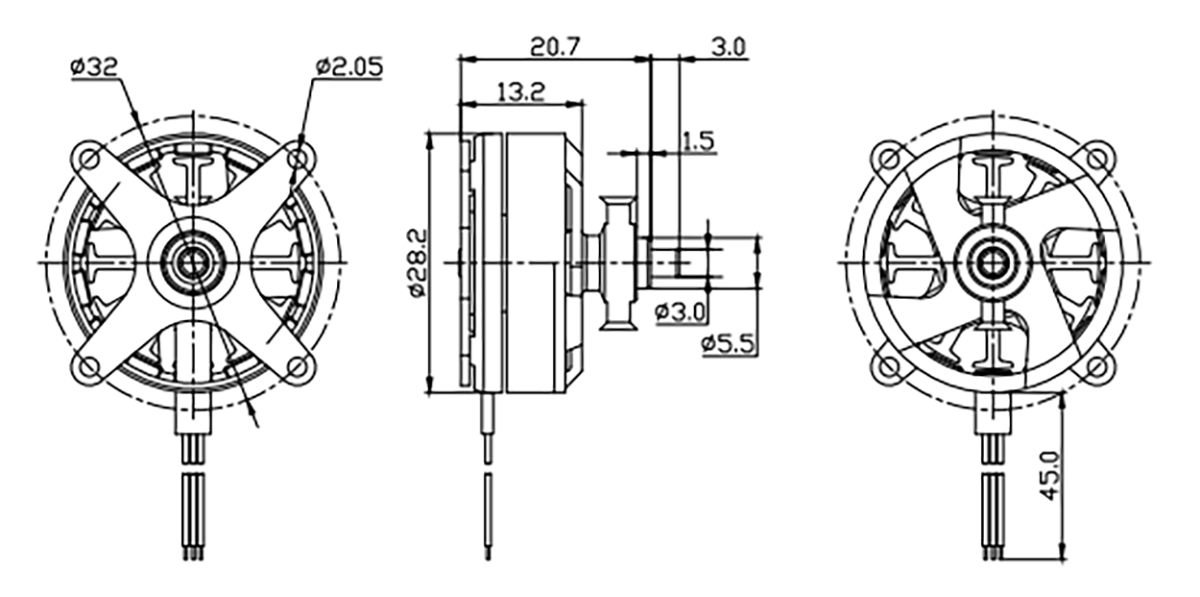

Motor dimensions
28.2*18mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
33.5g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-F2306	KV	W	A	g	g/W	/	S	A
	2400	250	23.7	660	2.6	5045	3S	50
	2700	345	24.5	760	2.2	4045	4S	50
	2700	262	25	705	2.7	5045	3S	50
