Home > Product > Multi-Rotor Motors > BGS-H180 9KV 13KV 96S UAV External Rotor Motor Supplier for High Performance Drone Systems

Multi-Rotor Motors

BGS-H180 9KV 13KV 96S UAV External Rotor Motor Supplier for High Performance Drone Systems

Product Number:H180

get free solutions compare

With a stator diameter of approximately 180 mm, these motors deliver maximum torque, ultra-high thrust, and unmatched power output, making them ideal for the most demanding drone systems in the market.

Motor dimensions
150*108mm
Number of slots
/
Copper wire grade
200℃
Shaft diameter
/
Motor weight
4.5KG
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller		Battery Lipo Cells	ESC
BGS-H180	KV	W	A	g	g/W	/		S	A
	9	16488	45.8	86100	5.22	62"straight oar		96S	100
	13	26640	74	94552	3.55	52"straight oar		96S	100
	11	19656	54.6	84300	4.274	52"straight oar		96S	100

test data

Model	Accelerator	Voltage	Pulling Force	Torque	Current	Speed	Power	Efficiency	Motor Temperature
BGS-H180 KV9	%	V	g	N.m	A	rpm	W	g/W	℃
	45%	360	19950	12.6343	5.2	1415	1872	10.66	85
	50%	360	25200	16.1122	7.4	1579	2664	9.46
	60%	360	35700	22.6499	12.3	1867	4428	8.06
	65%	360	42000	26.3934	15.4	2006	5544	7.58
	70%	360	46200	29.6212	18.3	2124	6588	7.01
	75%	360	53550	33.9838	22.3	2256	8028	6.67
	80%	360	60900	38.9455	26.7	2357	9612	6.34
	90%	360	73500	47.9998	36.3	2600	13068	5.62
	100%	360	86100	57.2583	45.8	2750	16488	5.22

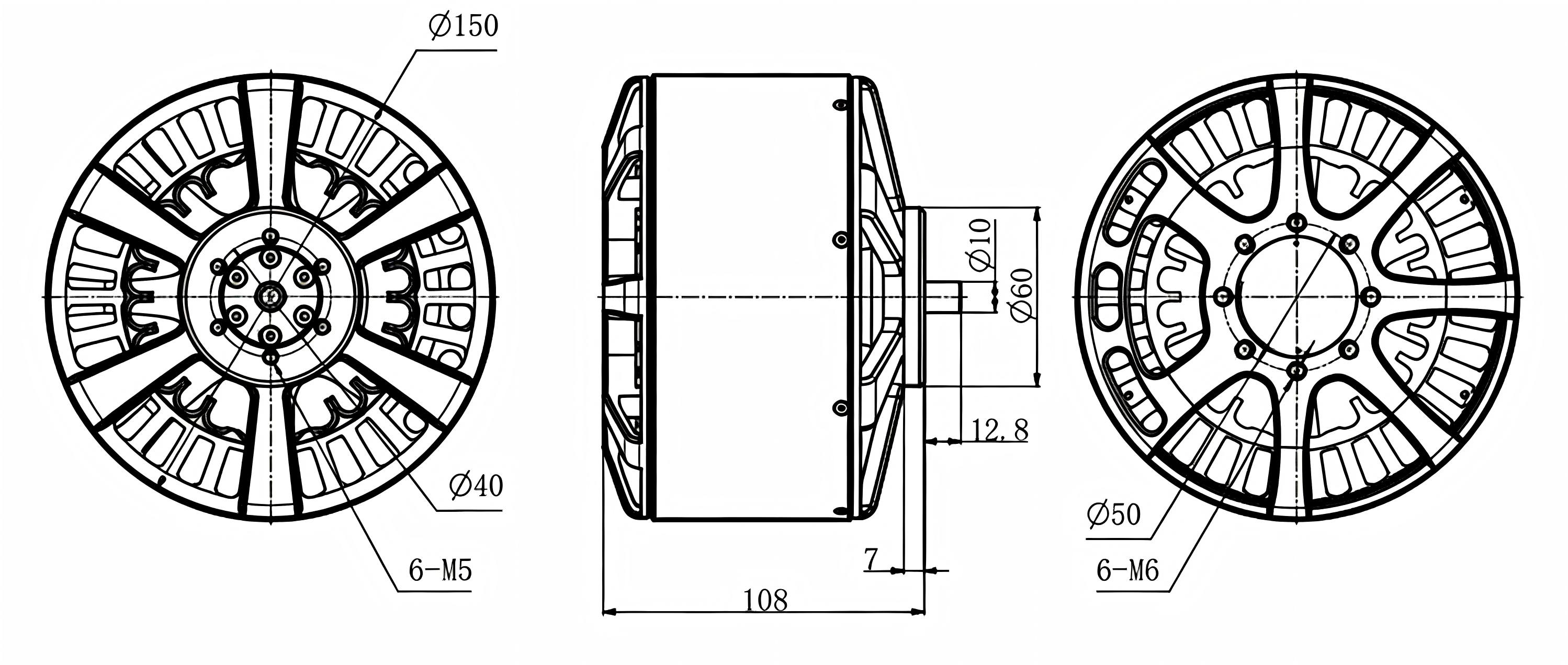

drawing
