BG-3515X 500KV 3515 Drone Motor with External Rotor Design for Stable Flight

Product Number:P3515X

With a stator diameter of around 30 mm, these motors provide an excellent balance of power, efficiency, and lightweight structure, making them ideal for multirotor drones, aerial photography platforms, and industrial UAV equipment.

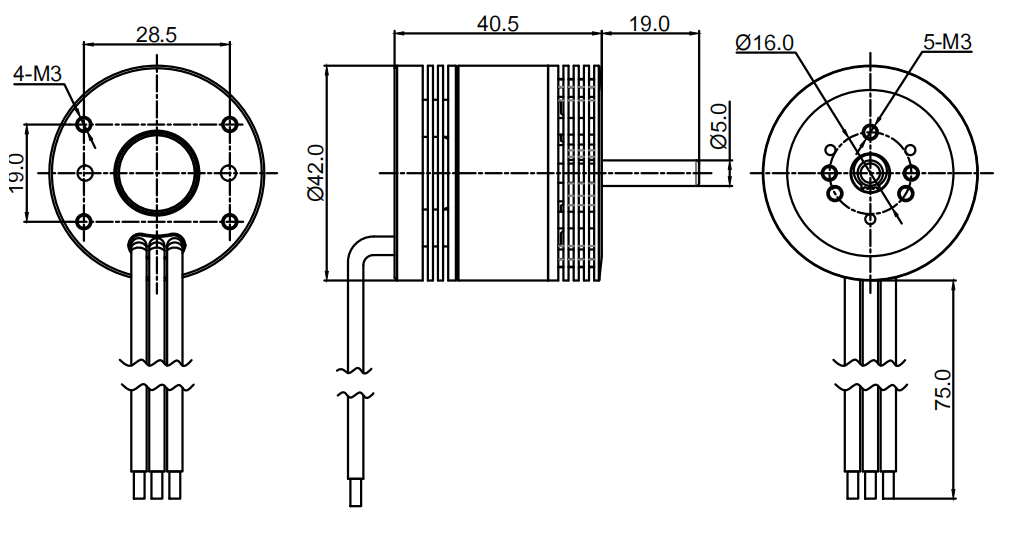

Motor dimensions
42*40.5mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
5mm
Motor weight
158g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-P3515X	KV	W	A	g	g/W	/	S	A
	330	600	27	3200	5.3	1850	6S	50
	500	566	25.5	2920	5.2	1550	6S	50
	500	800	36	3950	4.9	1650	6S	80
