BGS-F1804 2480KV 3S Brushless DC FPV motor

Product Number:F1804

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

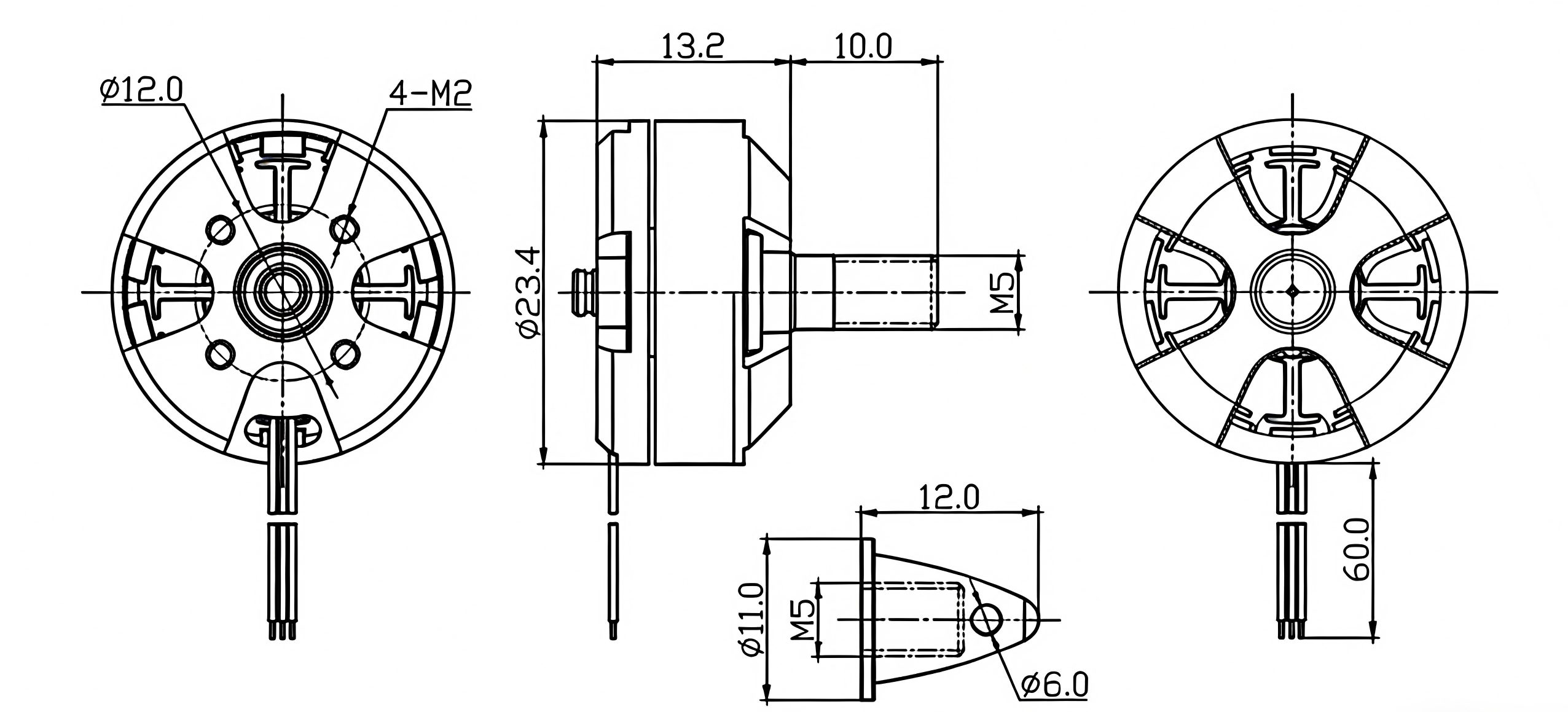

Motor dimensions
23.4*14.2mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
14g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F1804	KV	W	A	g	g/W	/	S	A
	2480	72	6.5	280	3.9	4045	3S	15
	2480	80	7.2	305	3.8	5045	3S	15
