BGS-F2006 2400KV 200W 3S 4S High Speed FPV Motor

Product Number:F2006

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

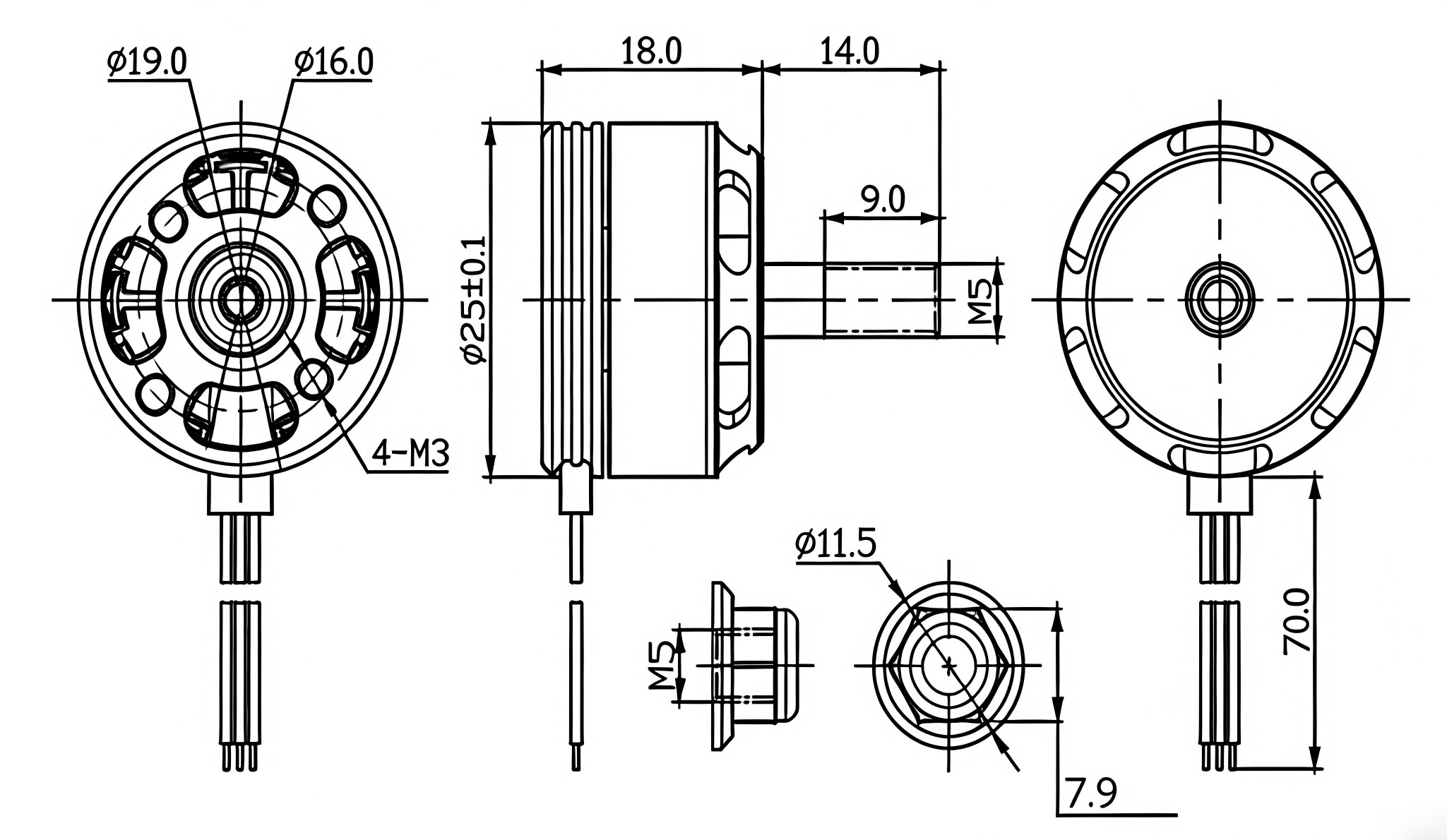

Motor dimensions
25*18mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
25g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F2006	KV	W	A	g	g/W	/	S	A
	2400	108	10.2	330	3.1	4040	3S	20
	2400	205	14.5	520	2.5	4040	4S	30
	2400	126	12	360	2.9	4045	3S	25
