BGS-F1104 4000KV 7500KV High RPM Brushless Motor for Drone Propeller

Product Number:BG-F1104

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

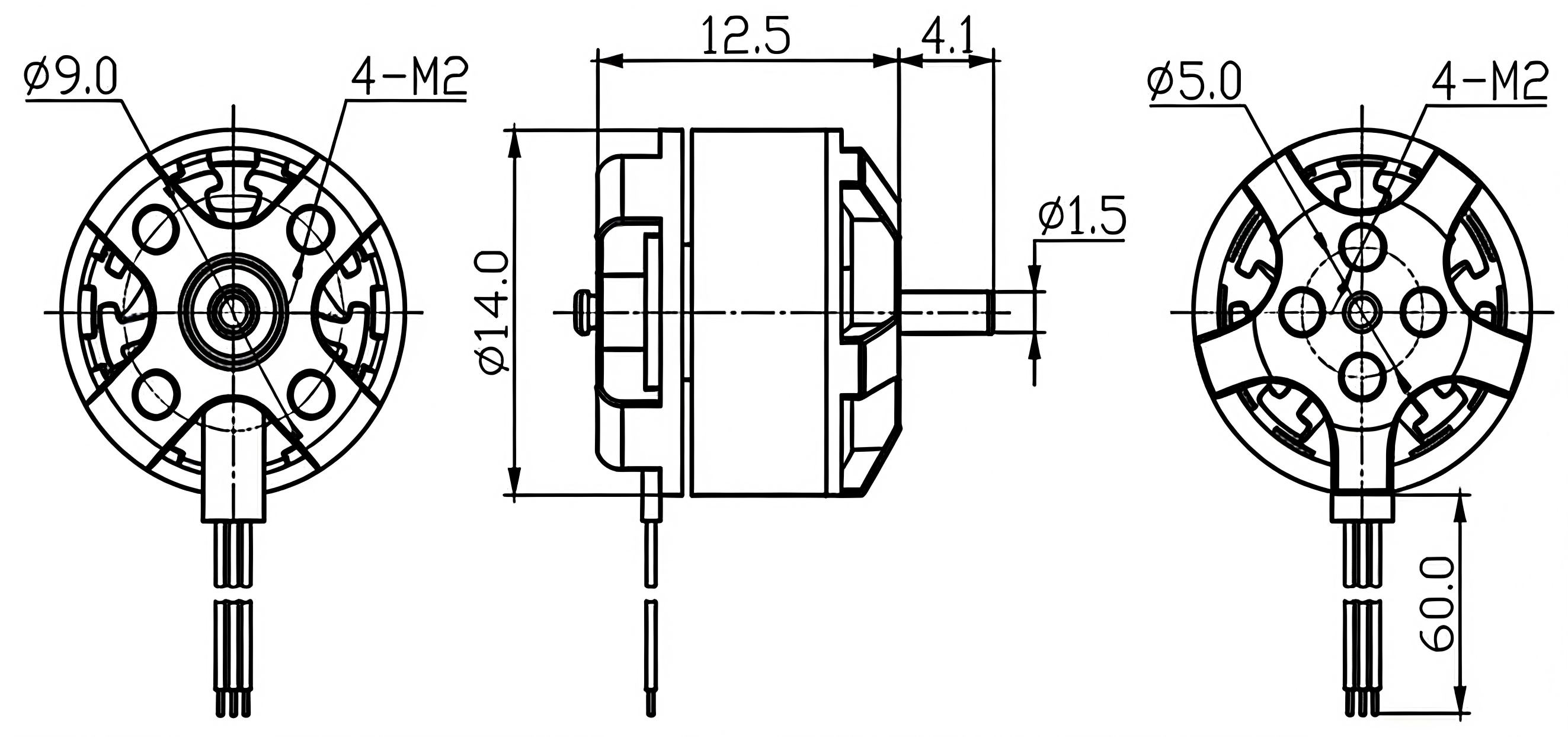

Motor dimensions
14*12.5mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
1.5mm
Motor weight
5.5g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BG-F1104	KV	W	A	g	g/W	/	S	A
	4000	43.3	3.9	102	2.4	3020	3S	8
	6500	27.4	3.7	93	3.4	3020	2S	8
	7500	34	4.6	105	3.1	3020	2S	10
