BGS-F1407 3500KV 2S 3S 3 phase brushless motor

Product Number:F1407

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

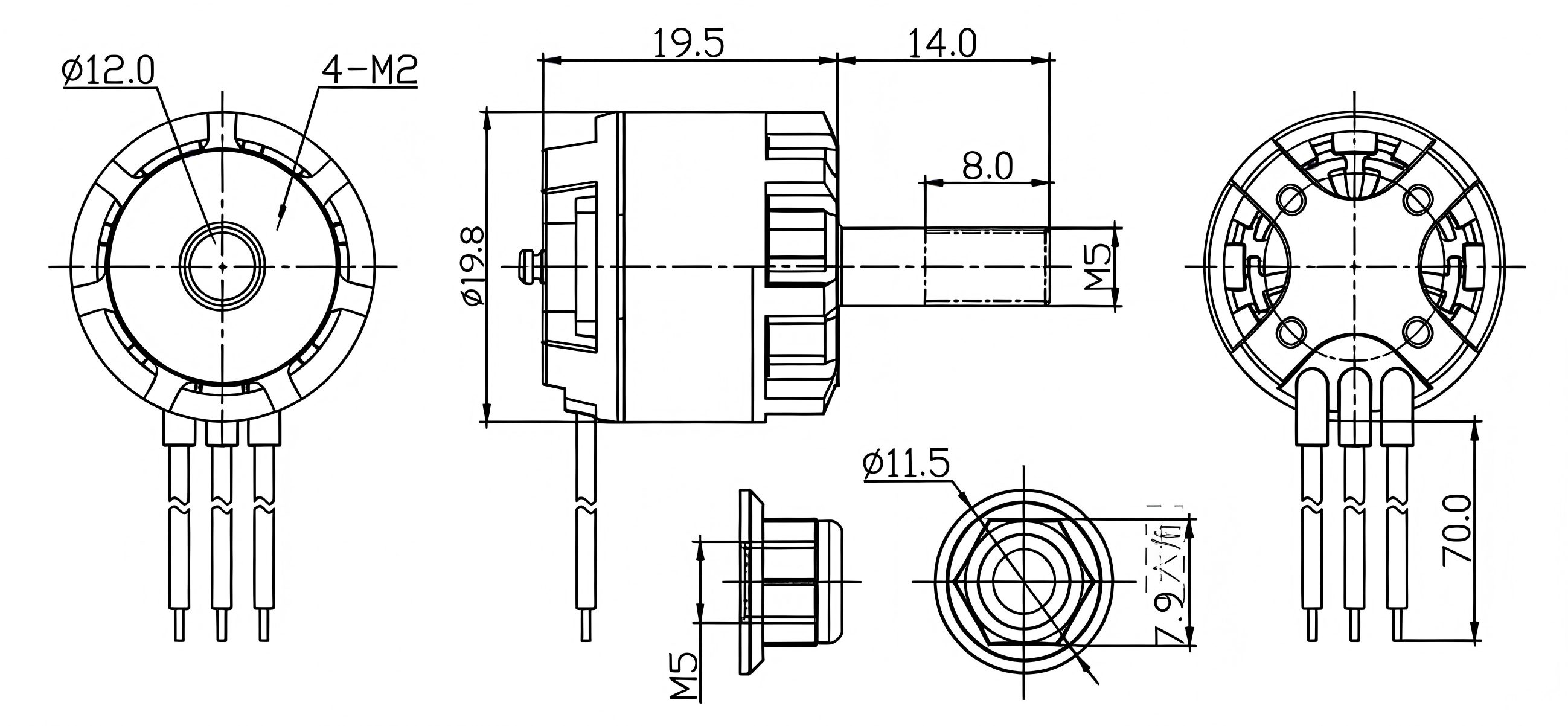

Motor dimensions
19.8*19.5mm
Number of slots
9N12P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
17g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F1407	KV	W	A	g	g/W	/	S	A
	3500	115	10.9	270	2.4	4045	3S	20
	3500	41	5.8	185	4.5	5030	2S	10
	3500	97	9.2	330	3.4	5030	3S	20
