BGS-F2405 1500KV 2600KV High Efficiency Drone Motor for UAV Applications

Product Number:F2405

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

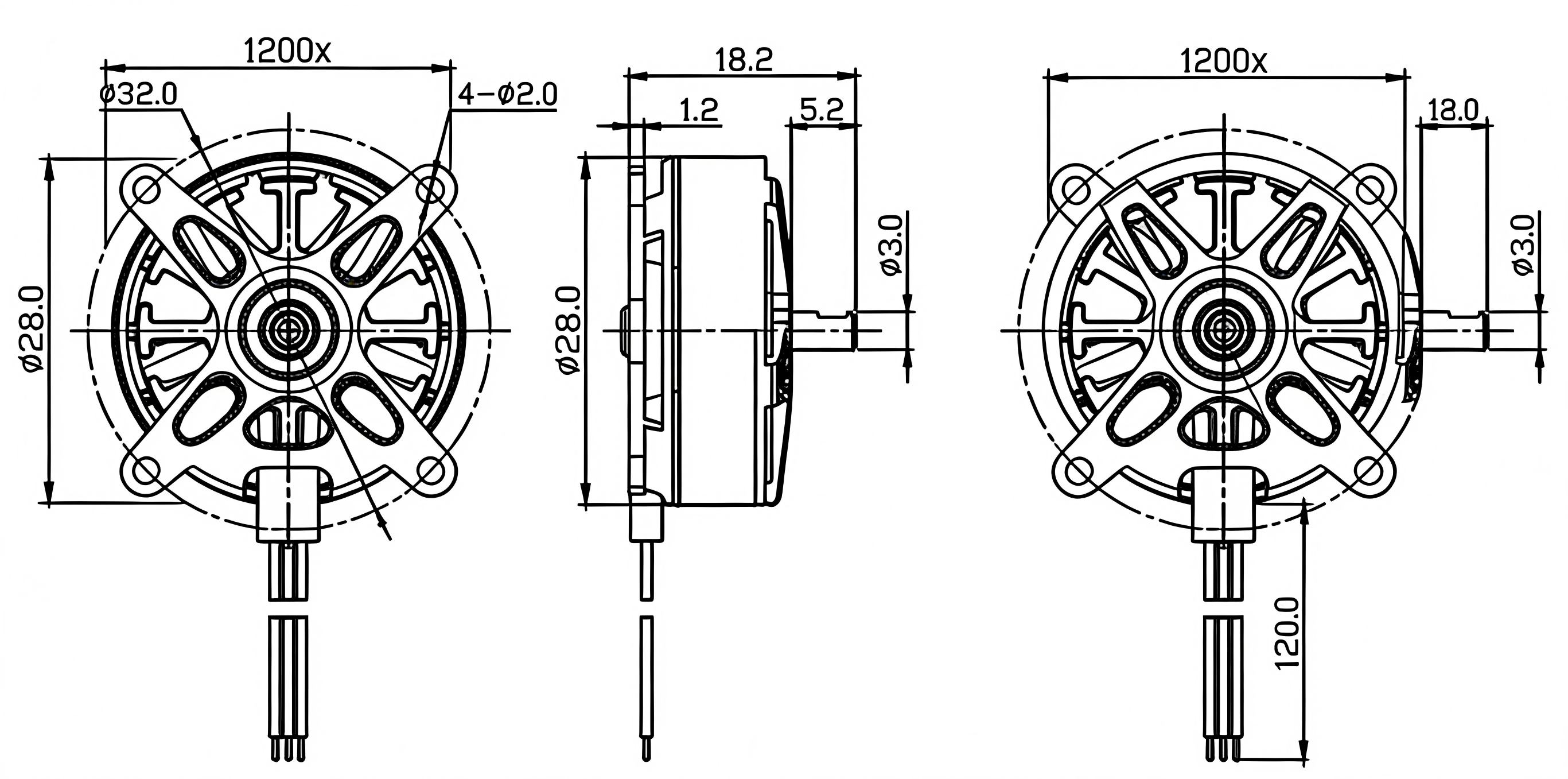

Motor dimensions
28*13mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
3mm
Motor weight
25g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F2405	KV	W	A	g	g/W	/	S	A
	1500	84	11.3	520	6.2	9048	2S	20
	2600	180	16.2	735	4.1	9048	3S	30
	2600	111	15	590	5.3	8044	2S	30
