BGS-F3110 900KV 1250KV Durable Brushless Motor for Racing FPV Drone

Product Number:F3110

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

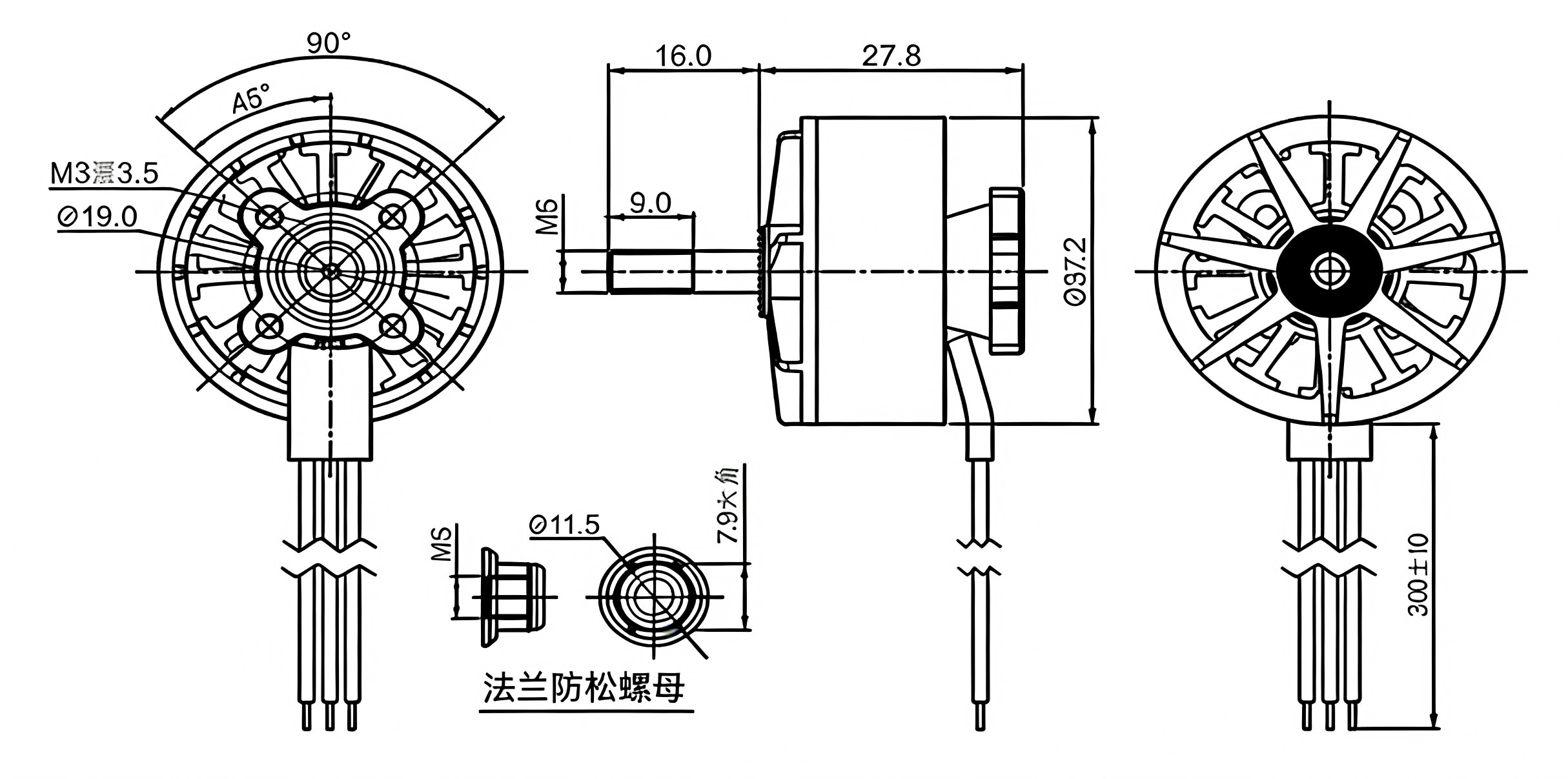

Motor dimensions
37.2*27.8mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
86g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F3110	KV	W	A	g	g/W	/	S	A
	900	1032	46.5	2920	2.8	9050	6S	100
	900	1150	51.8	3180	2.8	1050	6S	100
	1250	1181	53.2	3230	2.7	8040	6S	100
