BGS-F2306A 1500KV 1900KV UAV Brushless Motor High Speed FPV Drone Motor

Product Number:F2306A

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

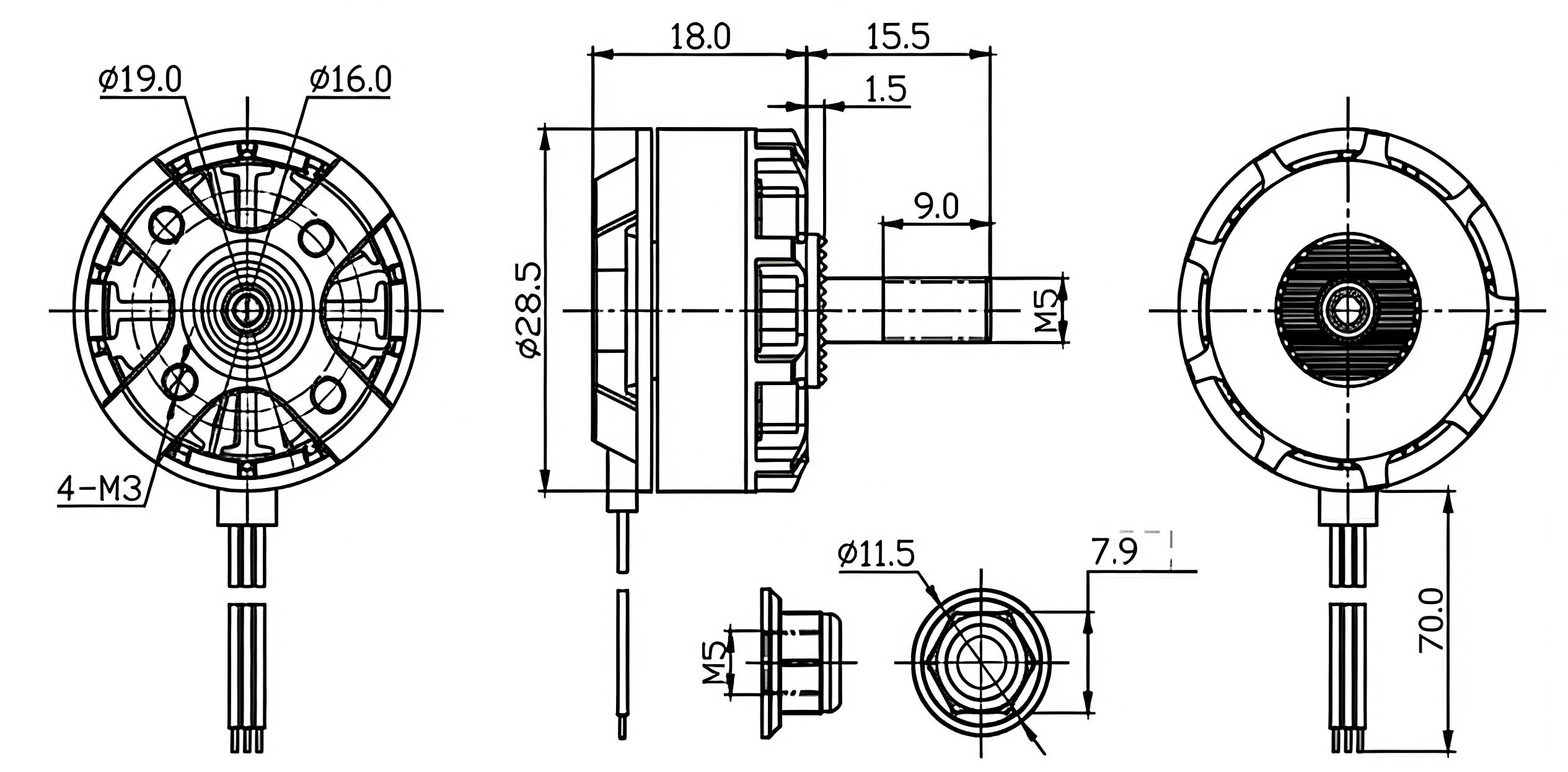

Motor dimensions
28.2*15.2mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
5.5mm
Motor weight
29g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F2306A	KV	W	A	g	g/W	/	S	A
	1500	169	15.2	780	4.6	8040	3S	30
	1900	137	18.5	660	4.8	9050	2S	40
	2300	143	19.3	635	4.4	8040	2S	40
