BGS-F2304 1850KV OEM FPV Brushless Motor Manufacturer Racing Drone Motor

Product Number:F2304

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

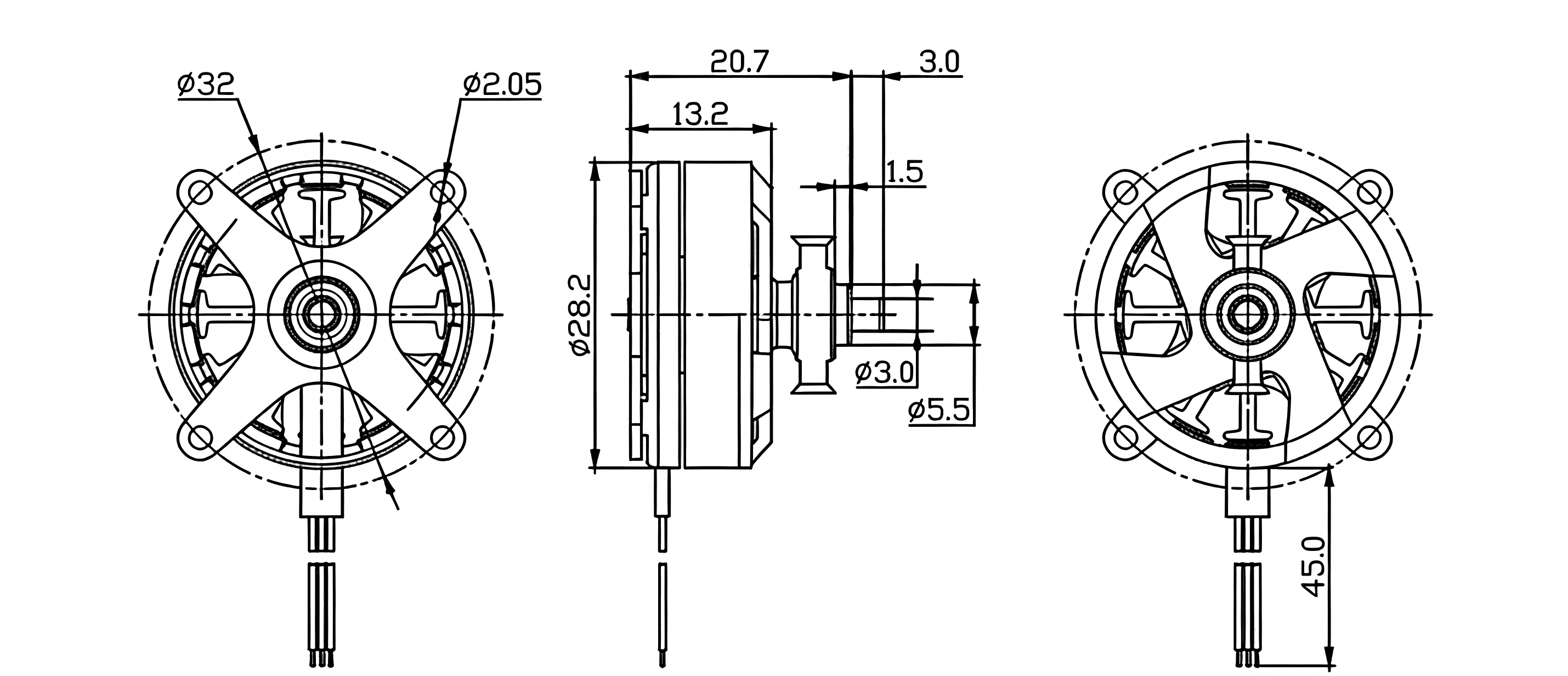

Motor dimensions
28.2*13.2mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
5.5mm
Motor weight
23g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F2304	KV	W	A	g	g/W	/	S	A
	1480	59.2	8	360	6.1	9047	2S	20
	1850	57.7	7.8	380	6.6	8040	2S	15
	1850	81.4	11	420	5.2	9040	2S	20
