Home > Product > Fixed-Wing Motors > BG-F2812 1120KV FPV Brushless Motor Supplier for Racing Drone

Fixed-Wing Motors

BG-F2812 1120KV FPV Brushless Motor Supplier for Racing Drone

Product Number:BG-F2812

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

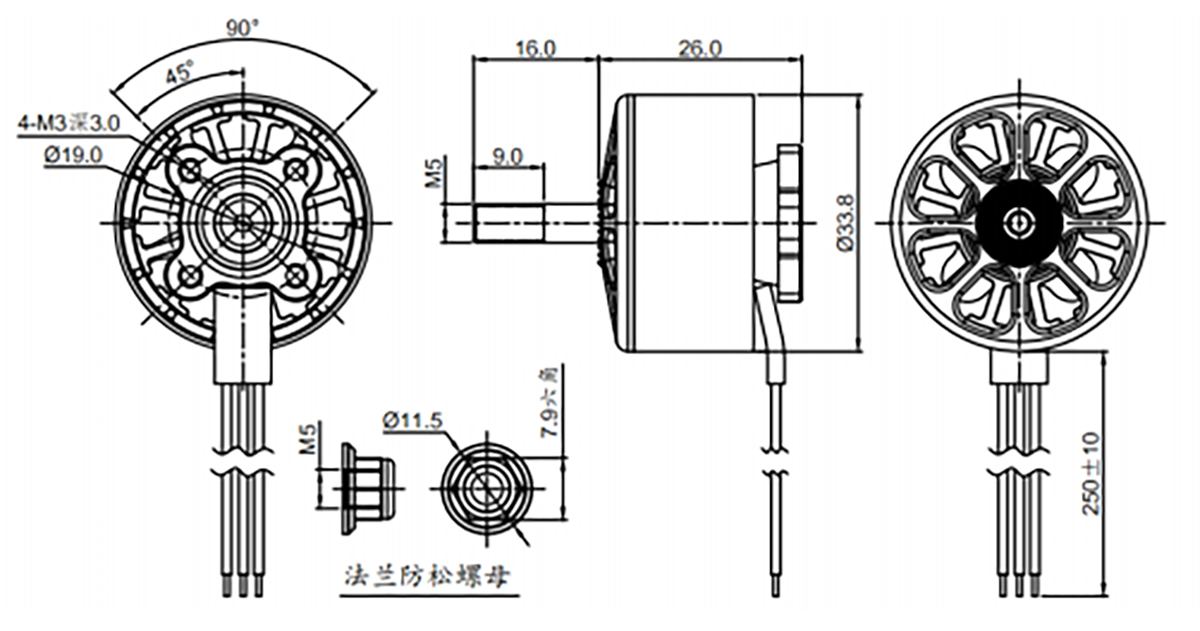

Motor dimensions
33.8*26mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
76.5g
Service life
＞1000h

Basic Data

MODEL	KV Value	maximum power	Maximum current	pull	Efficiency	Awe	Battery	Electronic Tuning
BG-F2812	KV	W	A	g	g/W	/	S	A
	900	728	32.8	2070	2.8	8045	6S	60
	1120	1340	60.3	2880	2.2	9050	5S	120
