Home > Product > Fixed-Wing Motors > BG-S1102 8000KV 12000KV 2S Fast-response FPV motors

Fixed-Wing Motors

BG-S1102 8000KV 12000KV 2S Fast-response FPV motors

Product Number:S1102

get free solutions compare

The 11XX series external rotor motors offer compact size, high speed, and efficient performance, making them the ideal choice for mini UAVs and precision small equipment applications.

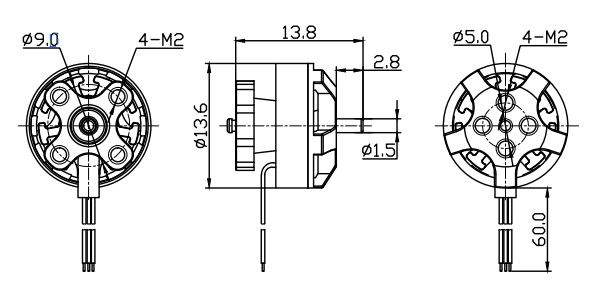

Motor dimensions
14*9.5mm
Number of slots
9N12P
Copper wire grade
200℃
Shaft diameter
1.5mm
Motor weight
3.4g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-S1102	KV	W	A	g	g/W	/	S	A
	8000	36.6	3.3	75	2.1	3020	2S	8
	10000	40	7.8	122	1.4	2030	2S	15
	12000	45	6.1	92	2	2030	1S	15
