BG-F1206 6000KV 7500KV High Speed FPV Motor

Product Number:F1206

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

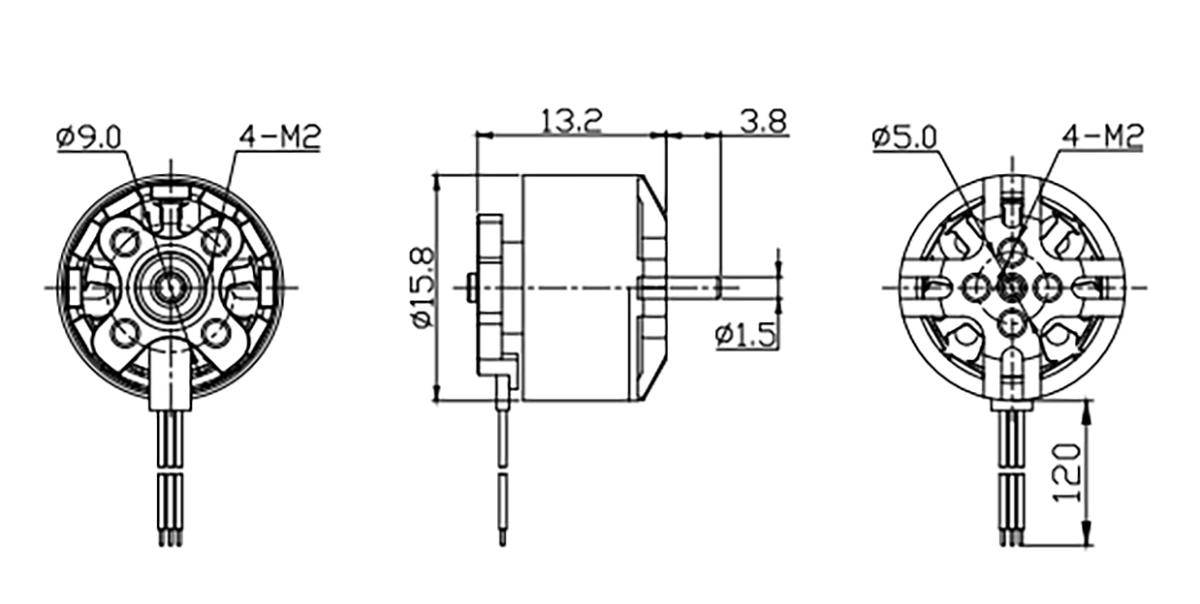

Motor dimensions
15.8*13.2mm
Number of slots
9N12P
Copper wire grade
200℃
Shaft diameter
1.5mm
Motor weight
9.2g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-F1206	KV	W	A	g	g/W	/	S	A
	4500	128	11.5	275	2.1	3024	3S	25
	6000	91	12.3	235	2.6	3024	2S	25
	7500	150	13.5	248	1.7	2040	3S	25
