BG-F2212 920KV 980KV FPV Motor 3S High-precision Photographic Survey Drone Motor

Product Number:BG-F2212

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

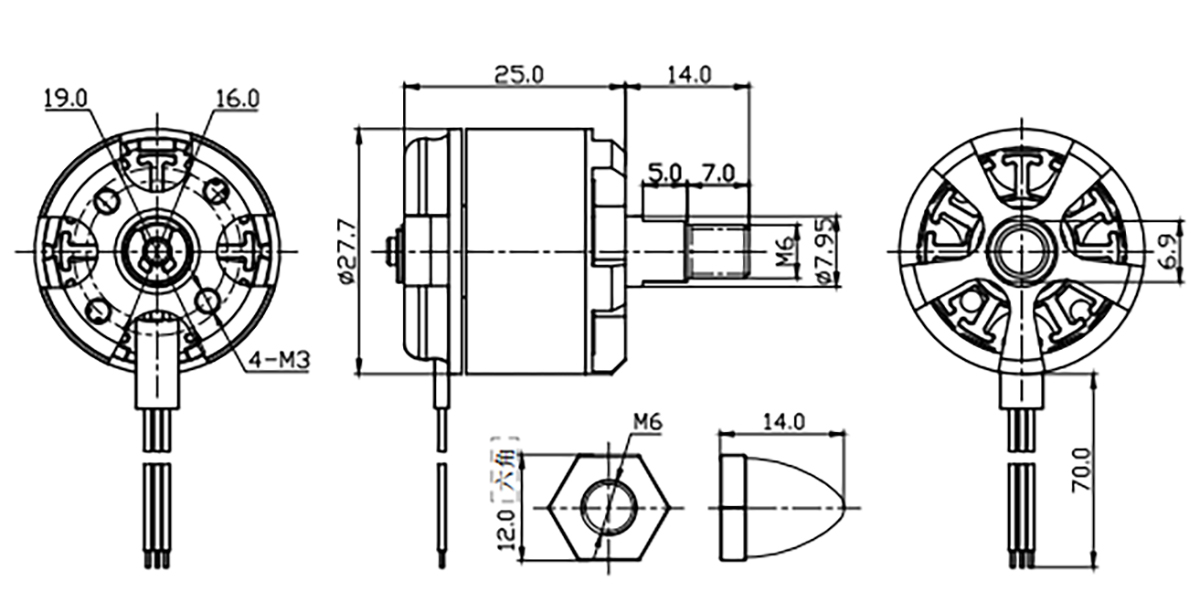

Motor dimensions
27.7*25mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M6
Motor weight
50g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	Electronic Tuning
BG-F2212	KV	W	A	g	g/W	/	S	A
	920	81	7.3	465	5.7	8045	3S	20
	920	105	9.5	642	6.1	1045	3S	20
	980	90	8.1	535	5.9	8045	3S	20
