Home > Product > Fixed-Wing Motors > BG-F1306 3100KV 4000KV 2S High efficiency FPV brushless motor

Fixed-Wing Motors

BG-F1306 3100KV 4000KV 2S High efficiency FPV brushless motor

Product Number:F1306

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

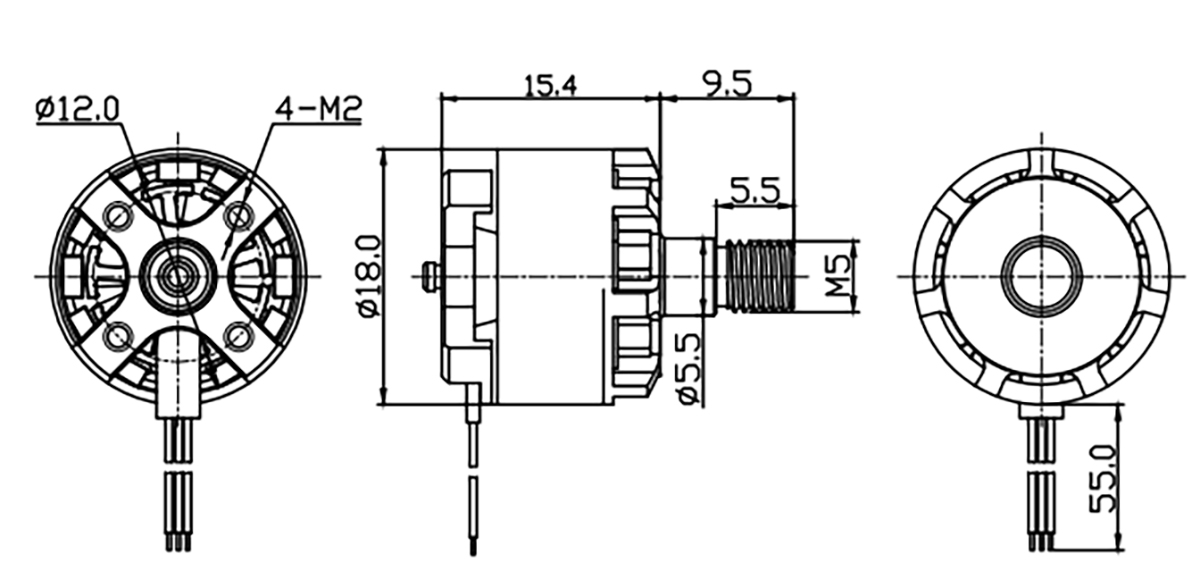

Motor dimensions
18*15.4mm
Number of slots
9N12P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
11.5g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-F1306	KV	W	A	g	g/W	/	S	A
	3100	56	7.5	223	4	6020	2S	15
	4000	61	8.2	230	3.8	4040	2S	15
	4000	58	7.8	242	4.2	5030	2S	15
