BG-F1108 4000KV 6800KV 3S High-thrust FPV motors

Product Number:F1108

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

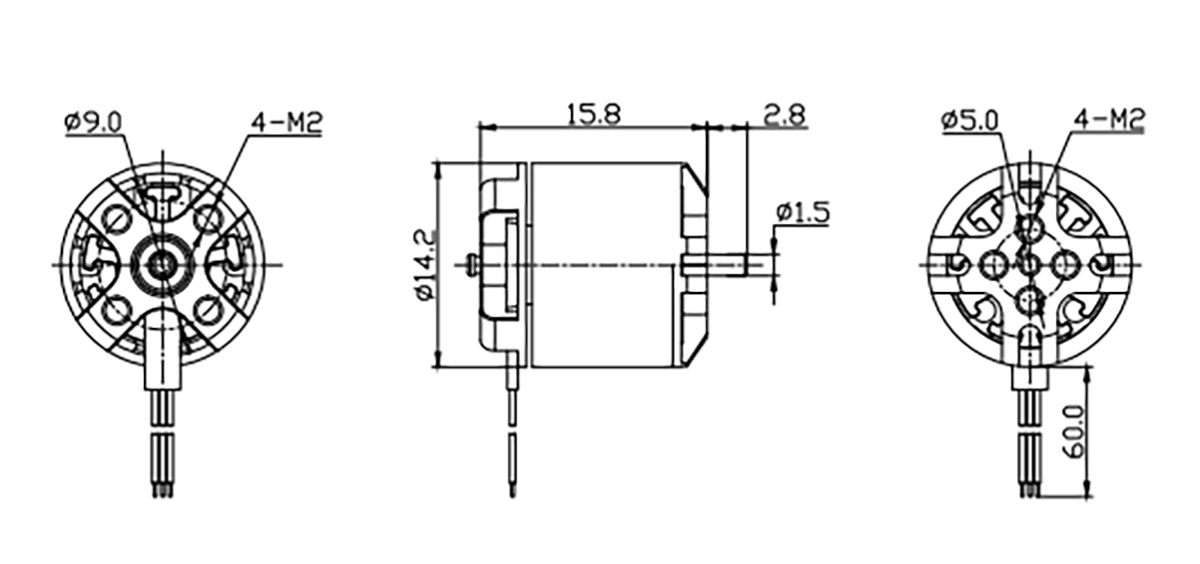

Motor dimensions
14.2*15.8mm
Number of slots
9N12P
Copper wire grade
200℃
Shaft diameter
1.5mm
Motor weight
8.5g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum current	Pull	Efficiency	Awe	Battery	ESC
BG-F1108	KV	W	A	g	g/W	/	S	A
	4000	35.5	4.8	140	3.9	3020	2S	5
	4000	72	6.5	220	3.1	3020	3S	15
	6800	107	14.5	280	2.6	3020	2S	30
