BGS-F2306.5 1750KV 1950KV UAV Brushless Motor High Speed FPV Drone Motor

Product Number:F2306A

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

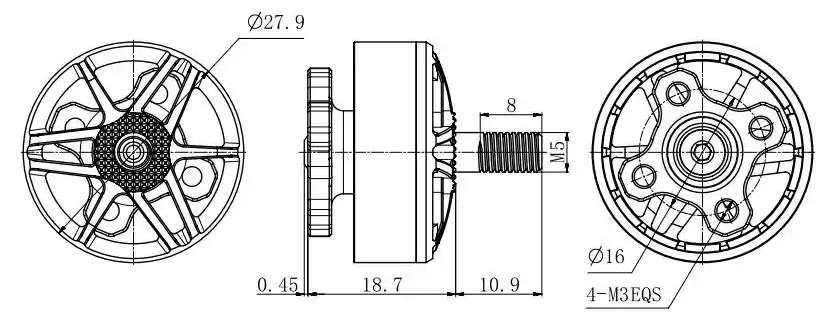

Motor dimensions
28.2*15.2mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
5.5mm
Motor weight
29g
Service life
＞1000h

Basic Data

MODEL	KV Value	Maximum power	Maximum current	Pull	Efficiency	Propeller	Battery	ESC
BGS-F2306.5	KV	W	A	g	g/W	/	S	A
	1950	967.55	44.10	1788	1.85	5146	6	40
	1750	806.47	36.10	1635	2.03	5146	6	40

test data

Model	Accelerator	Voltage	Pulling Force	Torque	Current	Speed	Power	Efficiency	Motor temperature
BGS-F2306.5 KV1950	%	V	g	N.m	A	rpm	W	g/W	℃
	50%	23.67	749	0.09	9.60	19750	227.23	3.30	/
	60%	23.39	1010	0.13	15.40	22554	360.21	2.80
	70%	23.19	1245	0.16	21.60	25248	500.90	2.49
	80%	22.82	1455	0.19	28.50	27369	650.37	2.24
	90%	22.37	1605	0.22	36.10	29270	807.56	1.99
	100%	21.94	1788	0.26	44.10	30750	967.55	1.85
BGS-F2306.5 KV1750	50%	23.75	630	0.07	6.60	18255	156.75	4.02	/
	60%	23.55	845	0.10	11.10	21152	261.41	3.23
	70%	23.32	1085	0.13	16.40	23953	382.45	2.84
	80%	23.11	1315	0.16	22.70	26120	524.60	2.51
	90%	22.75	1524	0.19	29.10	28045	662.03	2.30
	100%	22.34	1635	0.22	36.10	29445	806.47	2.03
