BG-F2205 2300KV 2600KV FPV Motor 3S 4S High Speed FPV motor

Product Number:BG-F2205

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

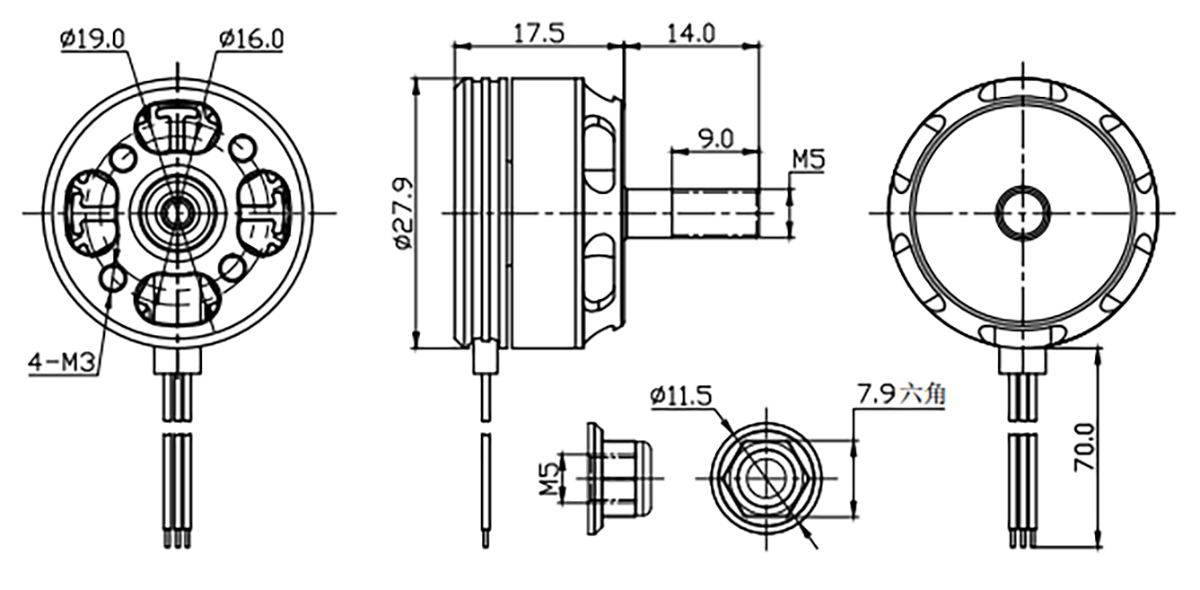

Motor dimensions
27.9*17.5mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
28g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-F2205	KV	W	A	g	g/W	/	S	A
	2300	208	18.8	620	3	6045	3S	40
	2300	290	21	800	2.8	6045	4S	40
	2600	198	17.8	530	2.7	5045	3S	40
