BG-F2302 1500KV 1800KV Brushless FPV motor Micro drone motor

Product Number:BG-F2302

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

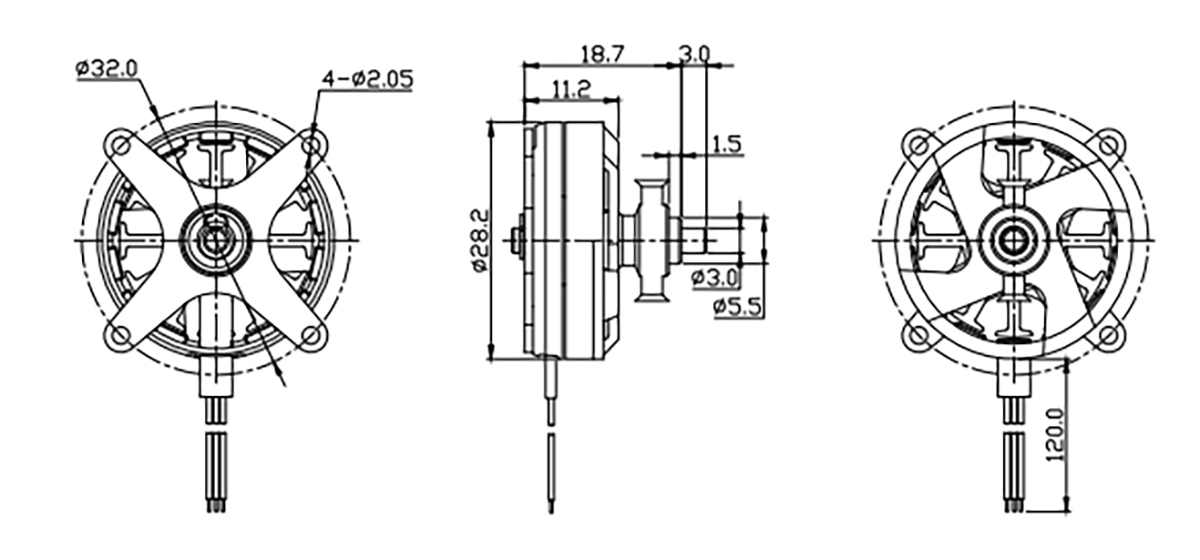

Motor dimensions
28.2*11.2mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
5.5mm
Motor weight
17.5g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-F2302	KV	W	A	g	g/W	/	S	A
	1500	50	6.8	260	5.2	8060	2S	15
	1650	59.2	8	268	4.5	8060	2S	20
	1800	72.5	9.8	282	3.9	8060	2S	20
