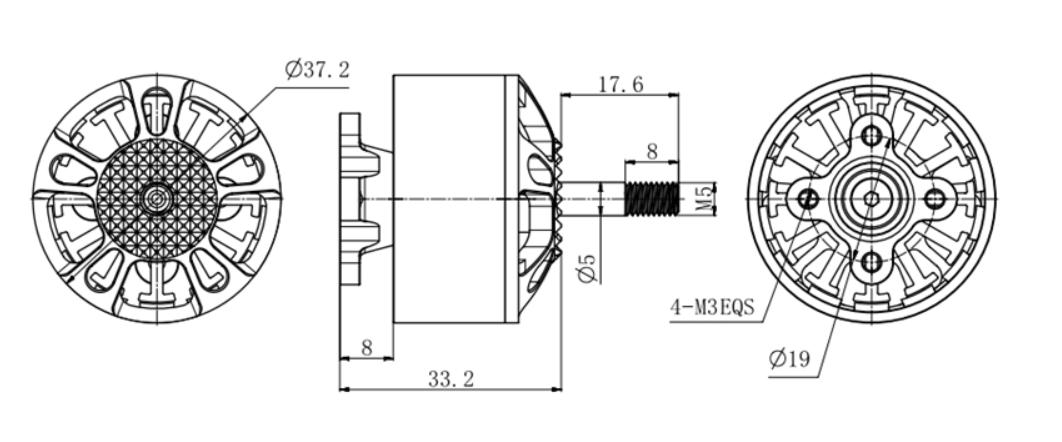

37.2*33.2mm
12N14P
200℃
5.0mm
115g
＞1000h
| Model | KV Value | Maximum Power | Maximum Current | Pull | Efficiency | Awe | Battery | ESC | |
| BG-S3115 | KV | W | A | g | g/W | / | S | A | |
| 1050 | 2006.4 | 83.6 | 4545 | 2.27 | 9"screw propeller | 6S | / | ||
| 640 | 1571.2 | 49.1 | 4310 | 2.74 | 9"screw propeller | 8S | / | ||
| 900 | 1711.2 | 71.3 | 4215 | 2.46 | 9"screw propeller | 6S | / | ||
| Model | Accelerator | Voltage | Pulling Force | Torque | Current | Speed | Power | Efficiency | Motor Temperature |
| BG-S3115 KV1050 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 24 | 1110 | / | 9.75 | 7985 | 234 | 4.74 | 45 | |
| 50% | 24 | 1630 | / | 17.3 | 9575 | 415.2 | 3.93 | ||
| 60% | 24 | 2220 | / | 26.7 | 11125 | 640.8 | 3.46 | ||
| 70% | 24 | 2835 | / | 37.4 | 12465 | 897.6 | 3.16 | ||
| 80% | 24 | 3455 | / | 51.2 | 13755 | 1228.8 | 2.81 | ||
| 90% | 24 | 4035 | / | 68.1 | 14815 | 1634.4 | 2.47 | ||
| 100% | 24 | 4545 | / | 83.6 | 16545 | 2006.4 | 2.27 |
