Multi-Rotor Motors

BGS-S2812 1160KV 6S High speed Small volume Lightweight UAV motor

Product Number:S2812

get free solutions compare

The 28XX series external rotor motors offer compact size, high speed, and efficient performance, making them the ideal choice for mini UAVs and precision small equipment applications.

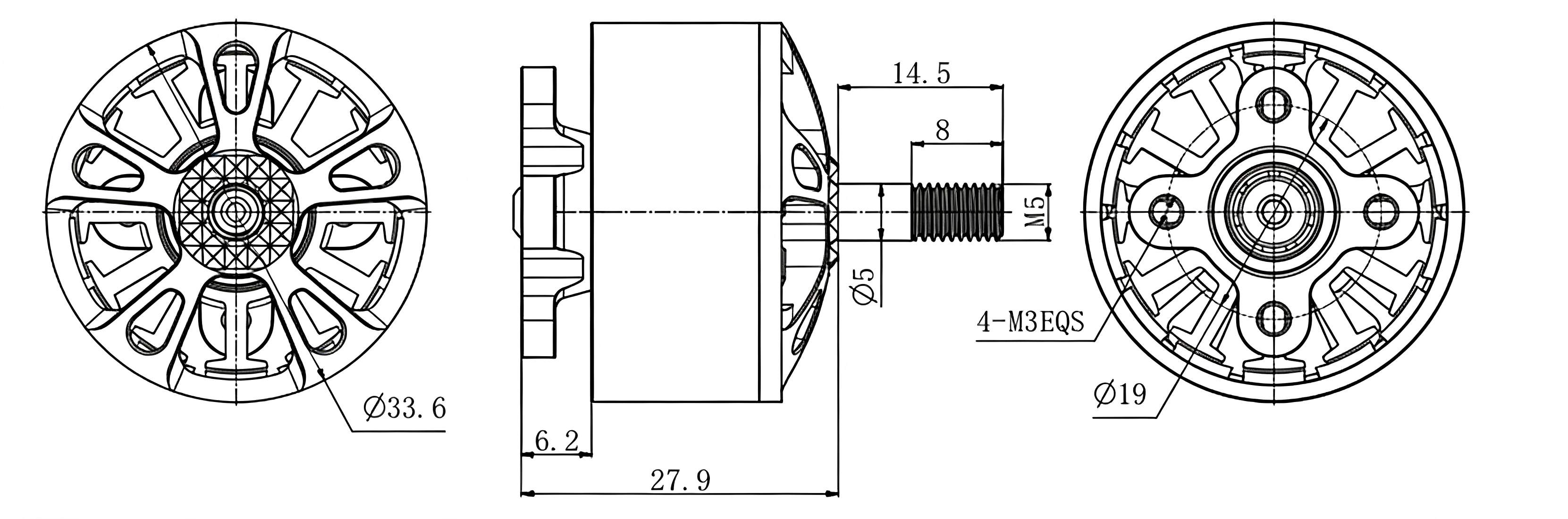

Motor dimensions
33.6*27.9mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
5.0 mm
Motor weight
76g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Lipo Cells	ESC
BGS-S2812	KV	W	A	g	g/W	/	S	A
	920	791.35	32.3	2465	3.11	9"	6S	/
	1160	1325.45	54.1	3150	2.38	9"	6S	/

test data

Model	Accelerator	Voltage	Pulling Force	Torque	Current	Speed	Power	Efficiency	Motor Temperature
BGS-S2812 KV920	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	24.5	600	/	5	9400	12.5	4.9	46
	50%	24.5	695	/	6.8	10550	166.6	4.17
	60%	24.5	1010	/	9.2	11720	225.4	4.48
	70%	24.5	1325	/	13.2	13410	323.4	4.1
	80%	24.5	1510	/	18.4	14950	450.8	3.35
	90%	24.5	2080	/	25.1	16410	614.95	3.38
	100%	24.5	2465	/	32.3	17700	791.35	3.11
