BGS-F2808 1500KV 1900KV High Quality FPV Brushless Motor Factory Supply

Product Number:F2808

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

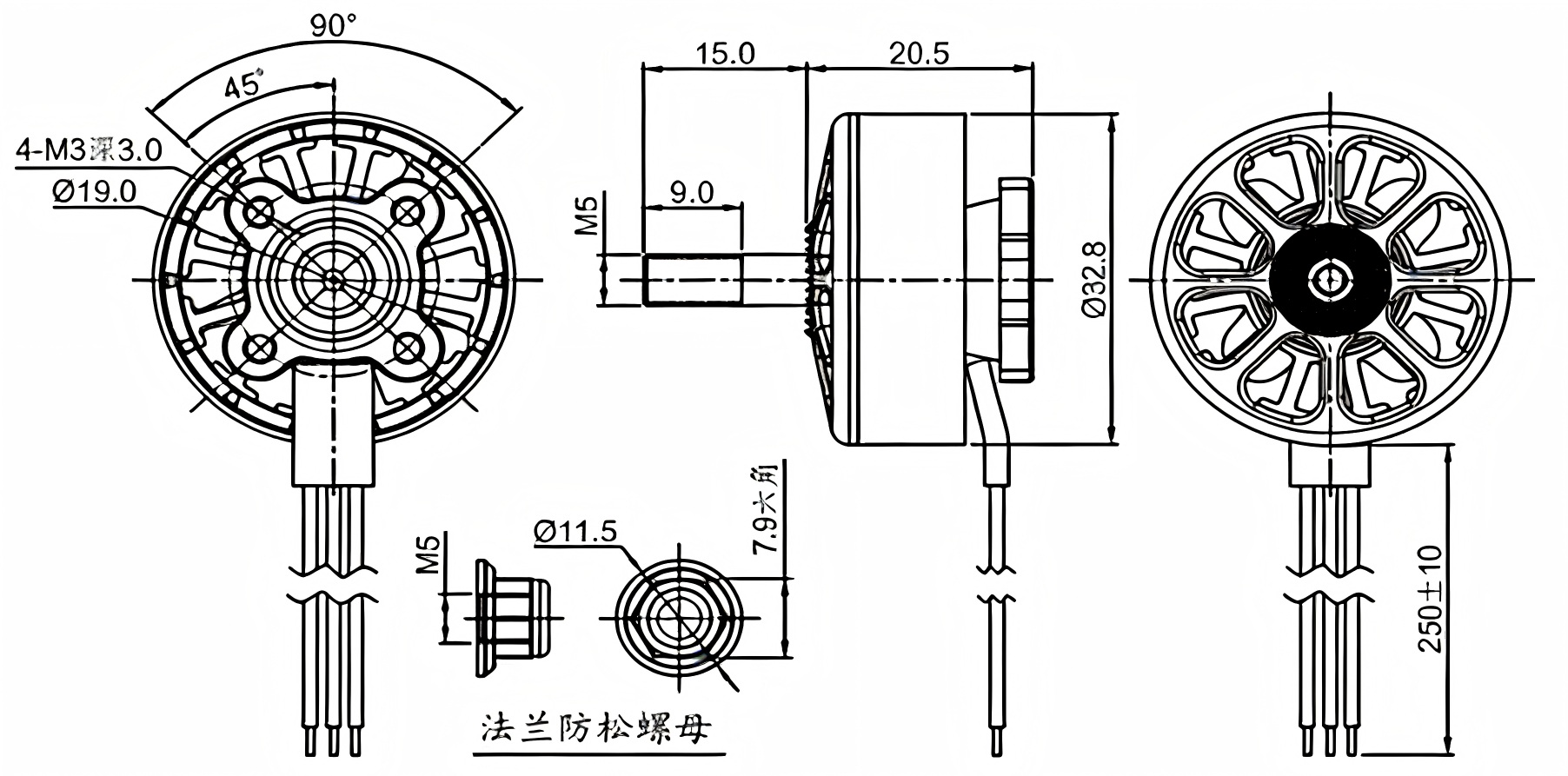

Motor dimensions
32.8*20.5mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
53g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F2808	KV	W	A	g	g/W	/	S	A
	1500	928	41.8	1930	2.08	6035	6S	80
	1500	1032	46.5	2120	2.05	7035	6S	100
	1900	912	49.3	1920	2.11	6035	6S	100
