BGS-F2508 1850KV Micro Drone Motor High Speed Brushless Motor

Product Number:F2508

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

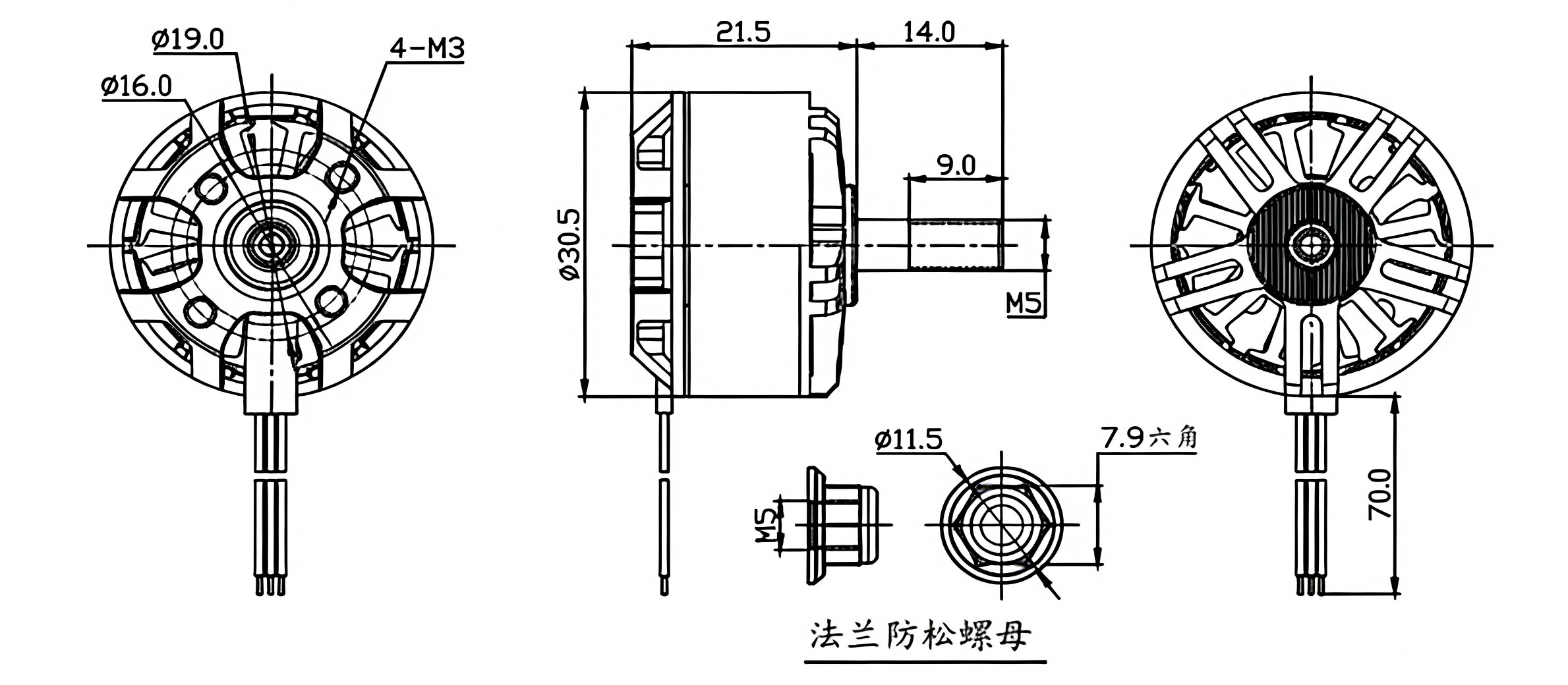

Motor dimensions
30.5*21.5mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
44g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BG-F2508	KV	W	A	g	g/W	/	S	A
	1850	417	28.2	1140	2.7	5045	4S	50
	1850	888	40	1650	1.9	4045	6S	80
	2500	622	42	1480	2.4	5045	4S	80
