BG-F2807 1600KV 1700KV Small Size FPV Brushless Motor for Micro Racing Drone

Product Number:BG-F2807

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

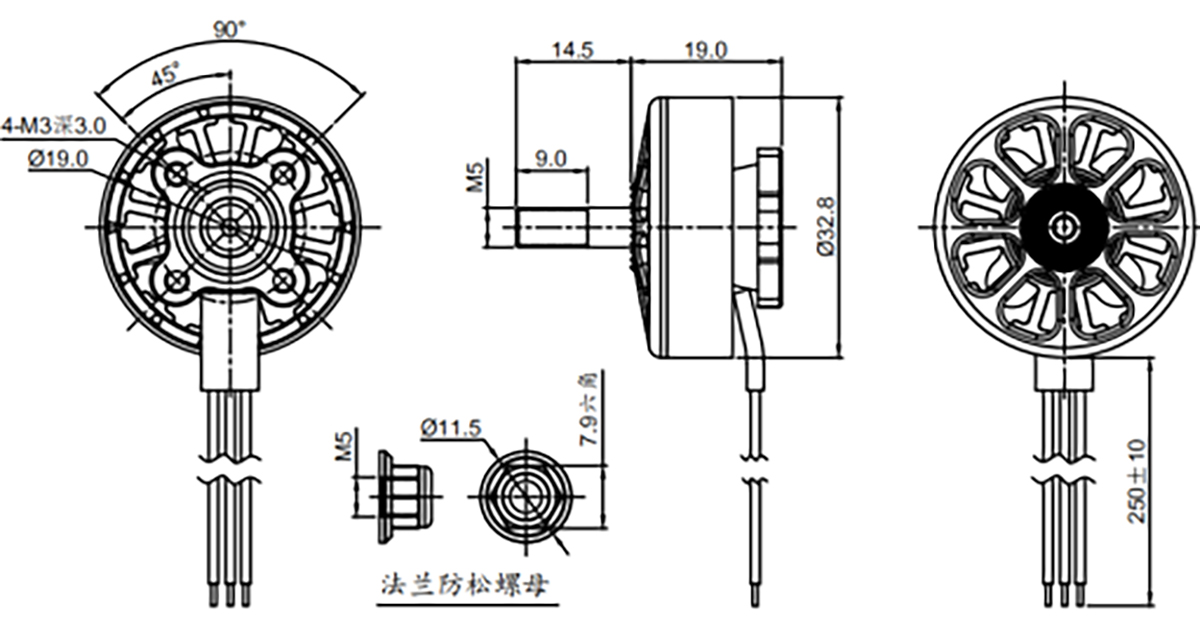

Motor dimensions
32.8*19mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
49.5g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-F2807	KV	W	A	g	g/W	/	S	A
	1300	913	41.5	2230	2.44	7035	6S	80
	1600	1030	46.8	2080	2.02	7035	6S	100
	1700	1080	45.8	2160	2.14	6040	6S	100
