Fixed-Wing Motors

BG-F1106 3800KV 1S 2S High-precision FPV motor

Product Number:F1106

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

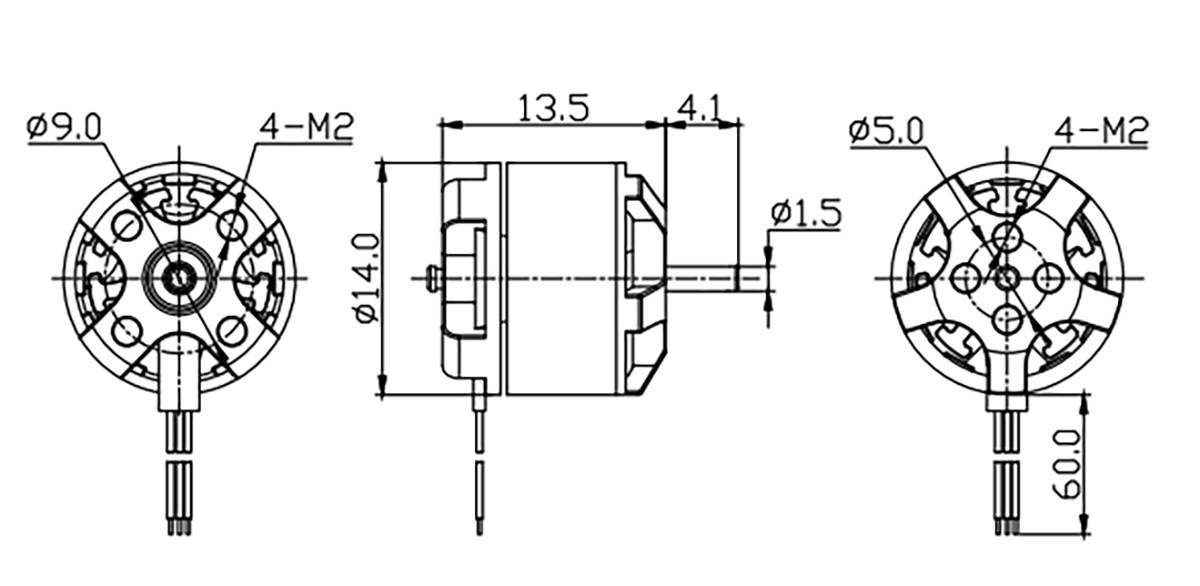

Motor dimensions
14*13.5mm
Number of slots
9N12P
Copper wire grade
200℃
Shaft diameter
1.5mm
Motor weight
6.5g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-P1106	KV	W	A	g	g/W		S	A
	3800	10.5	1.8	40	4.6	3020	1S	5
	3800	16	2.3	60	3.8	3020	2S	5
	3800	46	4.4	118	2.6	3020	3S	10
