BG-P4114 420KV 480KV 6S Drone Motor with External Rotor Design for Stable Flight

Product Number:P4114

get free solutions compare

With a stator diameter of around 40 mm, these motors deliver higher torque, stronger thrust, and improved stability, making them ideal for industrial drones that require reliable and efficient propulsion.

Motor dimensions
41*14mm
Number of slots
24N22P
Copper wire grade
200℃
Shaft diameter
6mm
Motor weight
160g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe		Battery	ESC
BG-P4114	KV	W	A	g	g/W	/		S	A
	370	546.7	25.24	3043	5.57	16"straight oar		6S	60
	420	615.52	28.47	3047	4.95	15"straight oar		6S	60
	480	742.27	34.46	3135	4.22	13"straight oar		6S	60

test data

Model	Accelerator	Voltage	Pulling Force	Torque	Current	Speed	Power	Efficiency	Motor Temperature
BG-P4114 KV370	%	V	g	N.m	A	rpm	W	g/W	℃
	45%	21.93	734	0.2	3.23	3387	70.83	10.36	56
	50%	21.91	902	0.24	4.25	3723	93.12	9.69
	60%	21.88	1292	0.33	6.9	4426	150.97	8.56
	70%	21.83	1784	0.44	10.93	5165	238.6	7.48
	80%	21.78	2089	0.52	14.56	5791	317.12	6.59
	85%	21.74	2340	0.59	17.18	6075	373.49	6.27
	90%	21.71	2610	0.64	19.56	6330	424.65	6.15
	95%	21.69	2847	0.71	22.47	6567	487.37	5.84
	100%	21.66	3043	0.77	25.24	6771	546.7	5.57

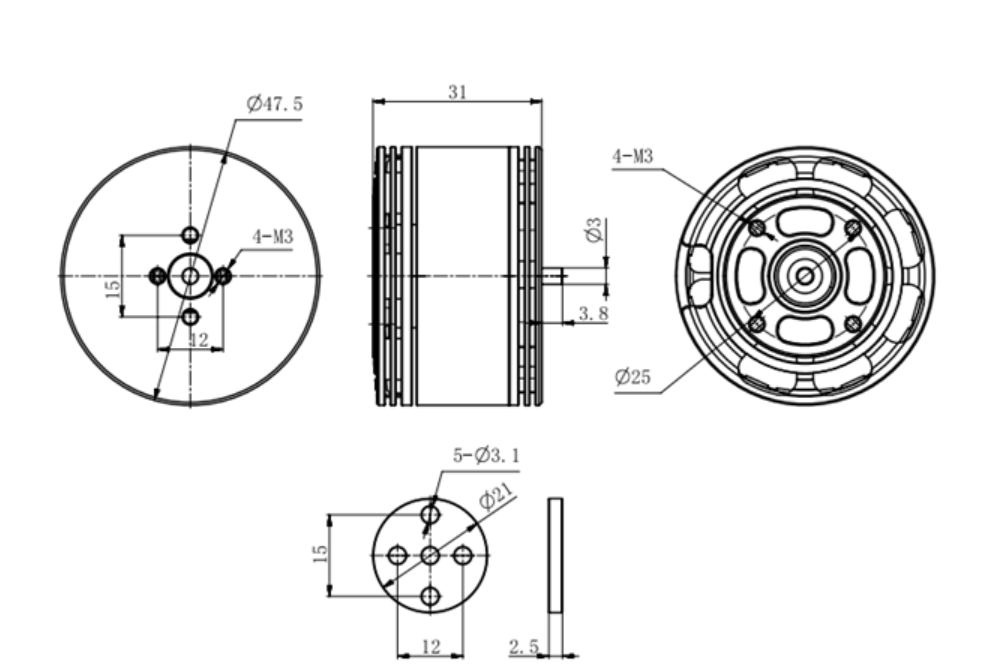

drawing
