Home > Product > FPV Motors > BGS-F2307 2200KV 2500KV Freestyle FPV Motor High Speed Brushless Motor

FPV Motors

BGS-F2307 2200KV 2500KV Freestyle FPV Motor High Speed Brushless Motor

Product Number:F2307

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

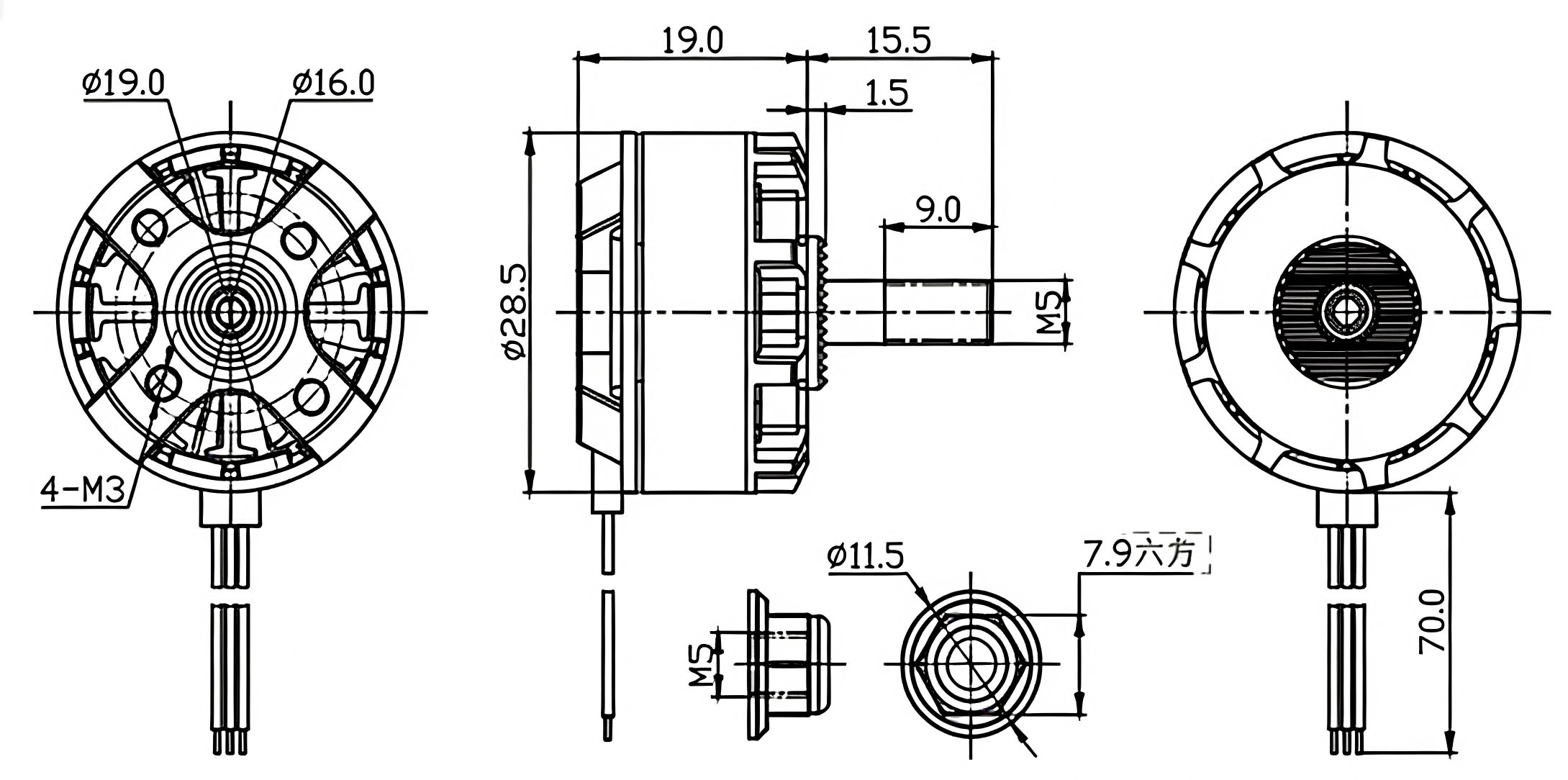

Motor dimensions
28.5*19mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
36g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F2307	KV	W	A	g	g/W	/	S	A
	2200	358	24.2	850	2.4	4045	4S	50
	2500	294	26.5	822	2.8	5045	3S	50
	2500	522	35.3	1205	2.3	5045	4S	70
