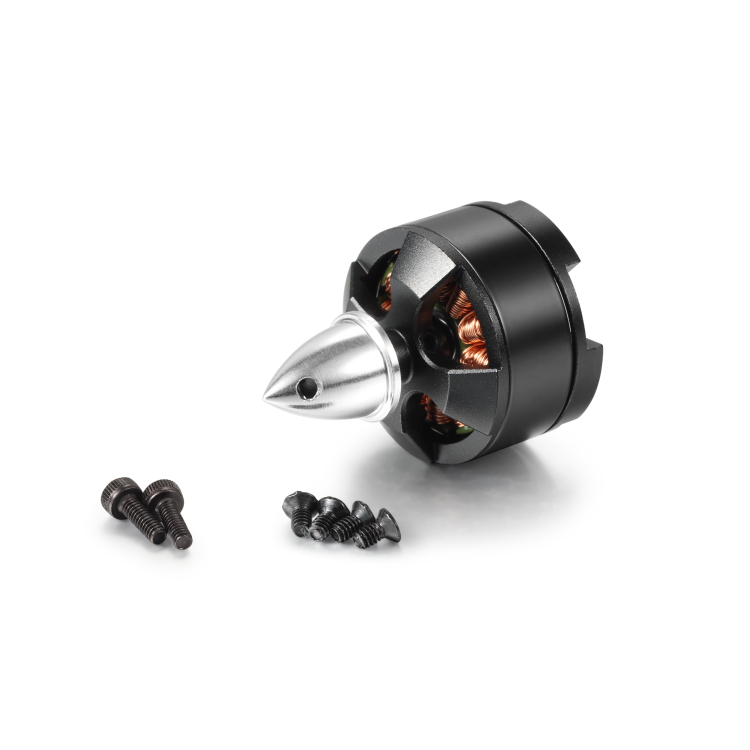

BG-F1806A 2400KV 2S 3S Mini drone motor High speed FPV motor

Product Number:BG-F1806A

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

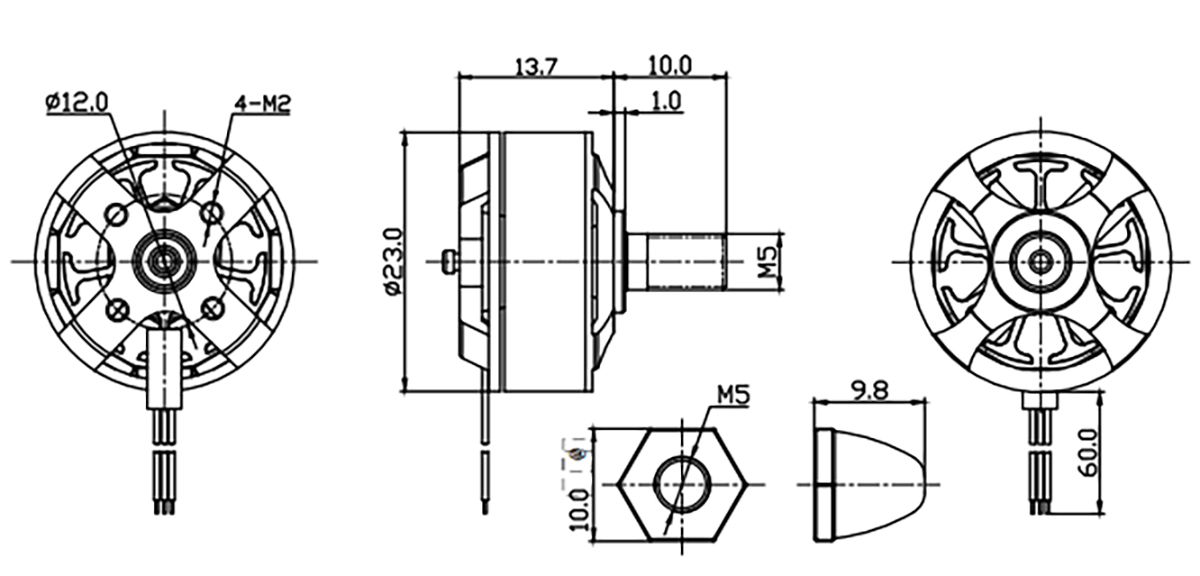

Motor dimensions
23*13.7mm
Number of slots
9N12P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
17g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-F1806A	KV	W	A	g	g/W	/	S	A
	2400	48	6.5	210	4.4	6020	2S	15
	2400	82	7.4	340	4.2	5030	3S	15
	2400	92	8.3	380	4.1	6020	3S	20
